Armasight Sidekick 320 review: a 1x thermal monocular you can wear

By the OpticVerdict Editorial Team.
Research-based review · Updated 2026-11-15

Our verdict: 4.2/5. The Armasight Sidekick 320 is a small thermal monocular built for walking, scanning and helmet use, not for long-range glassing. Armasight gives it a 1x optical view, a field of view of about 24 degrees, a 1024x768 OLED display and a 60 Hz refresh rate, with a 320x240 core behind a 9.1 mm fixed-focus lens. That suits close work: Armasight rates it to identify a human sized target at 53 m, one owner says it cannot identify beyond about 100 yards and another calls it a thermal for use within 100 yards. The other trade-offs are short battery life on one CR123A (one of the six owner reviews lists it as the only con) and helmet mounting, where Armasight lists the mount as optional and one owner says a mount came packaged via OpticsPlanet, so confirm what ships. Looking at AGM's handheld line? See our AGM Taipan V2 review.

OpticsPlanet shoppers rate the Sidekick 320 4.2/5 from 6 reviews. This page prices the Black Sidekick 320 (MPN TAVT36MNASIDE101) at around $1,150. Check price and availability on OpticsPlanet.

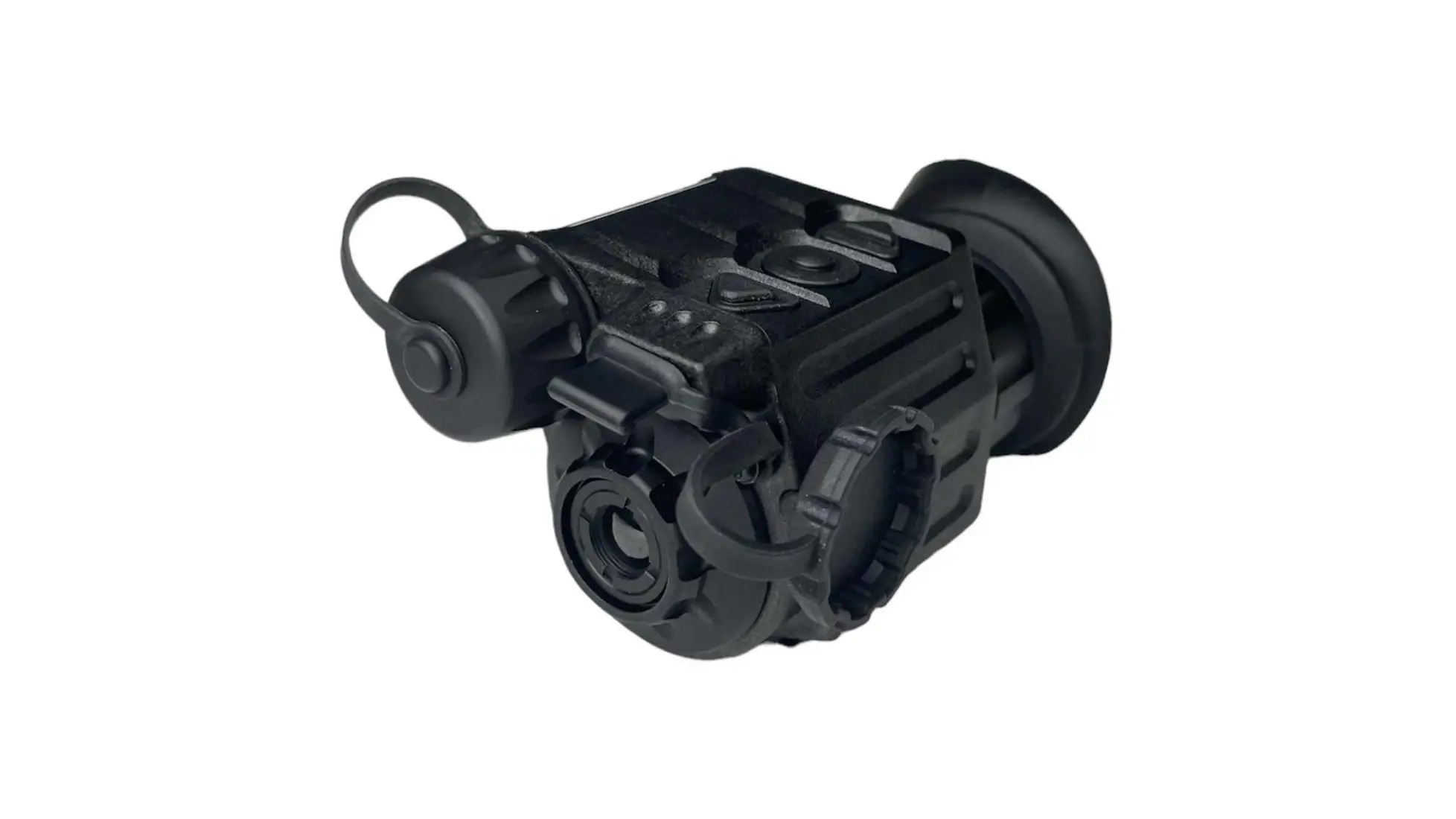

Armasight Sidekick 320 listing image: a black compact thermal monocular with eyecup and open lens cap
The retailer's listing image for the Sidekick 320: a black compact thermal monocular with its lens cap open. Click to enlarge.
Check Sidekick 320 price on OpticsPlanet

How we reviewed it: a research-based review built from Armasight's own product page for the Sidekick 320, the OpticsPlanet listing and all 6 owner reviews on it. We have not used this monocular ourselves; the score is our editorial opinion and owner ratings are shown attributed to their source. With 6 reviews in total, owner patterns here are small samples, and we give the number every time. Claims we could not confirm on Armasight's site are left out. See how we evaluate.

What the Sidekick 320 is

The Sidekick 320 is a handheld or helmet-mounted thermal viewer. It is not a riflescope. Armasight's spec table and feature list give 1x optical magnification with 1x to 4x digital zoom, an ULTEM composite body, three-button control, multiple color palettes, image detail enhancement, video recording and image capture, a compass, a battery status indicator, a USB-C interface for external devices and a USB video stream. Armasight lists no wireless connection.

Inside, Armasight puts a 320x240 core with 12 μm pixels behind a 9.1 mm fixed-focus lens, and lists a weight of 214 g with the rubber eyecup and no battery. Armasight also lists an "Ability to Shift Thermal Image to Collimate Sidekick Image with NVD when Bridged" among its features, and one verified owner reports pairing the unit with a pvs14.

Armasight describes the Sidekick 320 as "Designed and Assembled in the USA from U.S. and Global Component".

Why owners like it: small, light and a true 1x view

All six Sidekick 320 reviews on OpticsPlanet give three stars or more, and every one says they would recommend it. The most repeated praise is size and weight: three of the six call it small or light and a fourth lists size and weight among its pros. The other point owners make is the 1x view. Because the image is not magnified, you can walk with it, which the most helpful positive review puts plainly:

“It has a really wide FOV and a true 1x lens, so I can navigate the terrain without stumbling or falling.”

M King, most helpful positive review of the Sidekick 320, via OpticsPlanet

Owners also use it as a scanner before switching to a primary optic: a verified owner says it is much easier to scan with than the primary optic on a rifle.

Armasight render of the Sidekick 320 thermal monocular, listing a 320x240 12-micron core, 9.1 mm lens with 24-degree field of view, 1024x768 OLED display and 60 Hz refresh.

The 320's limit: detection, not identification

Armasight rates the Sidekick 320 at 331 m detection, 85 m recognition and 53 m identification on a human sized target. Two of the six 320 reviews make the same point in their own words: the unit shows that something warm is there well before it shows what it is. A third, the most helpful negative review, faults the 320x240 resolution for demanding applications and calls it a thermal for use within 100 yards.

“It does lack the resolution to identify outside of approx 100yrds.”

Balloo (TX), verified owner, Sidekick 320, 3 stars, via OpticsPlanet

“Not a top-of-the-line thermal as it's 320x240 resolution just isn't good enough for demanding applications.”

Mike, most helpful negative review of the Sidekick 320 (3 stars), via OpticsPlanet

The second of the two, a verified owner, uses it to detect people on their property but says it is not particularly good at identification in the dark. If you hunt open fields and need to tell a coyote from a dog at range, a higher-resolution handheld fits better: our best thermal monocular guide covers models with 640x512 and 640x480 sensors.

The honest catches

Battery life. Armasight lists 1.5 hours on one CR123A and 5.5 hours on two CR123A batteries with the battery extender, at 20 C (68 F); the OpticsPlanet listing's feature list says 1 hour on one CR123A at 20 degrees C. One of the six owner reviews lists battery life as its only con.

Armasight's in-the-box list for the Sidekick 320 includes two CR123A batteries and a battery extender. The OpticsPlanet package list names the two CR123A batteries but not the extender, so confirm what ships with your order.

Helmet mount: check what ships. Armasight lists a dovetail mini-rail included for helmet mounting "(with Optional Mount)", and says the Sidekick works with the Rayvn Group Modular Bridge Mount for use with a PVS-14, an MNVD or a second Sidekick, a line that ends "(sold separately)" on its product page. The most helpful critical owner review says a mount came packaged with the unit via OpticsPlanet, but the OpticsPlanet package list does not name one. If helmet use is the plan, confirm what ships with your order before you buy a mount.

Trade-offs, plainly

Key specifications: Sidekick 320

SpecSidekick 320
Thermal coreArmaCORE 320x240 Gen 3, 12 μm
LensF/1.00, 9.1 mm fixed focus
Optical magnification / digital zoom1x / 1x to 4x
Field of view24.18° (H) x 18.13° (V)
NETD< 40 mK
Refresh rate60 Hz
DisplayXGA (1024 x 768) OLED
Detection / recognition / identification (human sized target)331 m / 85 m / 53 m
Eye relief / diopter15 mm / -5 to +5 dpt
Power1 x CR123A, or 2 x CR123A / 1 x 16650
Battery life (20 C / 68 F)1.5 h on 1 x CR123A, 5.5 h on 2 x CR123A
Memory4 hours of video
WirelessNone
Environmental ratingIP67
Operating temperature-40 °C to +50 °C (-40 °F to +122 °F)
Dimensions98.81 x 65.28 x 59.69 mm (3.89 x 2.57 x 2.35 in)
Weight (with rubber eyecup, no battery)214 g (0.47 lb)
Warranty (Armasight product page)3 years with registration
OpticsPlanet row we cardBlack, MPN TAVT36MNASIDE101
Price (OpticsPlanet)around $1,150

Specifications are Armasight's, from its Sidekick 320 product page. The OpticsPlanet listing gives different dimensions and a 1-hour runtime; where they differ we print Armasight's figures. Detection, recognition and identification ranges are Armasight's ratings for a human sized target, not field measurements. No editorial award is claimed.

Buying notes

The OpticsPlanet listing carries a "Government Export Restriction" notice. Armasight's own export policy page states: "Some Armasight item(s) are subject to the International Traffic in Arms Regulations (ITAR), and export is strictly prohibited without authorization or a license issued by the U.S. Department of State's Directorate of Defense Trade Controls." We do not interpret export rules; read the retailer's notice before you order. On warranty, Armasight's product page lists 3 years with registration; the Armasight warranty text on the OpticsPlanet listing gives 1 year standard for thermal imaging devices and 3 years extended when you register the product.

Should you buy it?

View the Armasight Sidekick 320 on OpticsPlanet

FAQ

How far can the Sidekick 320 identify a target?

Armasight rates the Sidekick 320 at 331 m detection, 85 m recognition and 53 m identification on a human sized target. Two of the six OpticsPlanet reviews make the point in their own words that it shows something warm is there well before it shows what it is, and one of those two, a verified owner, says it lacks the resolution to identify outside about 100 yards. It suits walking, navigating and scanning close in better than identifying at long range.

How long does the Armasight Sidekick 320 battery last?

Armasight lists 1.5 hours on one CR123A and 5.5 hours on two CR123A batteries with the battery extender, at 20 C (68 F). It also accepts one 16650 cell. The OpticsPlanet listing's feature list says 1 hour on one CR123A at 20 degrees C; this page uses Armasight's figure. One of the six OpticsPlanet reviews lists battery life as its only con.

Can you mount the Sidekick 320 on a helmet?

Yes. Armasight lists a dovetail mini-rail included for helmet mounting (with optional mount) and says the Sidekick works with the Rayvn Group Modular Bridge Mount, sold separately, for helmet mounting with a PVS-14, an MNVD or a second Sidekick. The most helpful critical OpticsPlanet review says a mount came packaged with the unit from OpticsPlanet, but the listing's package list does not name one, so confirm what ships with your order.

Is the Sidekick 320 a thermal scope I can shoot with?

No. Armasight sells the Sidekick as a mini thermal monocular, with a dovetail mini-rail for helmet mounting (with an optional mount), 1x optical magnification and 1x to 4x digital zoom. It is a viewer for scanning and moving at night. One verified owner says it is much easier to scan with than the primary optic on a rifle.

Does the Sidekick 320 have Wi-Fi?

No. Armasight lists Wireless: None for the Sidekick 320. It records video and images to onboard memory (Armasight lists 4 hours of video) and has a USB-C interface and USB video stream.
