Aero Precision M4E1 review: the threaded upper builders buy, and the complete uppers built on it
Our verdict: 4.5/5. The Aero Precision M4E1 Threaded Assembled Upper Receiver is a forged 7075-T6 AR-15 upper with an angular, billet-style profile, sold with the port door and forward assist already installed. Aero says it is threaded to accept a standard AR15 barrel nut and works with standard AR15/M16 components, so the barrel and handguard are your choice. Owners rate it highly for the tight fit with Aero lowers, the finish and the price. It loses half a point for real trade-offs: colour shades on the anodized OD Green row can vary (Aero says so itself), four reviewers received blemished units, and one reviewer found it does not seat in a standard vise block. Remember what an assembled upper is: you still need a barrel, gas system, handguard, bolt carrier group and charging handle. If you want a finished upper instead, the three complete M4E1 uppers below come with barrel and handguard, but still without a bolt carrier group or charging handle. For a finished billet upper see our Radian Model 1 review; for .308, the Aero Precision M5 review.
OpticsPlanet shoppers rate the assembled upper 4.8/5 across 80 reviews. The row we price is Anodized Black, APAR700201AC, at around $160; the same listing also sells Brown, OD Green and FDE Cerakote rows. Check price and availability on OpticsPlanet.
How we reviewed it: a research-based review built from Aero Precision's own product and warranty pages, the retailer's listings for four M4E1 uppers, and every owner review those listings show (80 for the assembled upper, 26, 25 and 24 for the three complete uppers). Where the retailer and Aero disagree, we print Aero's wording. Research leads we could not confirm on Aero's site or a government page were left out. We have not built or fired these uppers ourselves; the score is our editorial opinion and owner ratings are shown attributed to their source. See how we evaluate.

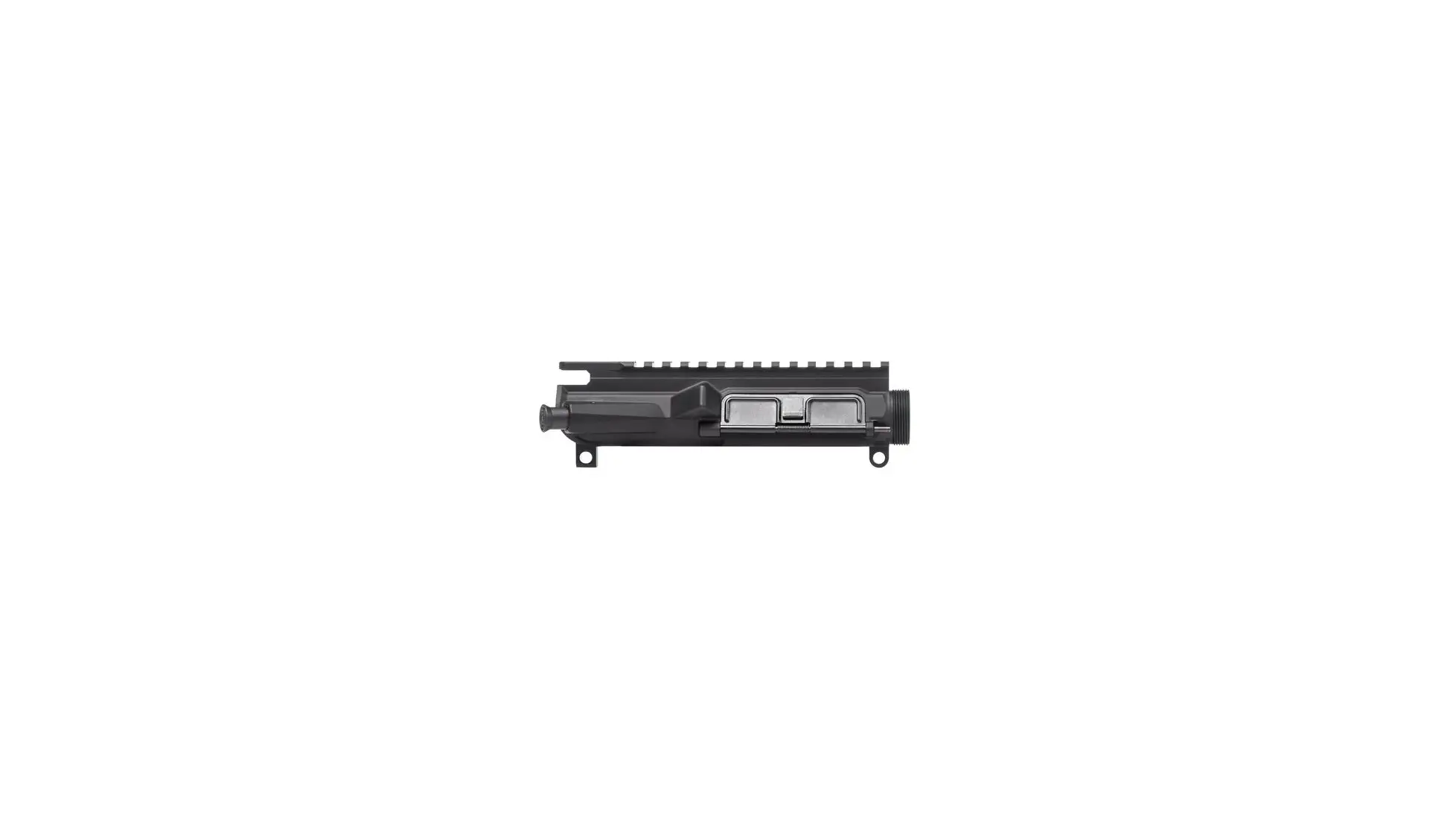

What the M4E1 Threaded upper is
Aero describes the M4E1 Threaded Upper Receiver as having “a new angular machined design that helps it stand apart from standard mil-spec upper receivers”. It shares the body profile of Aero's M4E1 Enhanced upper, but where the Enhanced version has a handguard mounting platform forged into the receiver, the Threaded version is threaded for a standard AR15 barrel nut. That is the reason to choose it: you are not tied to one handguard system. Aero's feature list adds a forging that gives a “billet look”, a Picatinny profile that blends with Aero's Enhanced and ATLAS series handguards, M4 feed ramps, .250 takedown pin holes, laser engraved T-marks and a threaded forward assist roll pin. Aero lists it at 8.65 oz and gives a barrel nut torque of 50 ft-lbs.
Aero also says the upper is designed to pair with its M4E1 Lower Receiver, “giving you a billet looking receiver set at a fraction of the billet price.” At least 13 reviewers say they run it on an Aero lower, and fit with that lower is a recurring point of praise.
What is in the box. Aero lists two items: the receiver, and the port door and forward assist installed. Two of the retailer's colour rows (Brown and OD Green) carry the words “M-LOK Handguard” in their row names, but the package contents on the same listing name only the receiver, port door and forward assist. No handguard is included. Four reviewers name the pre-assembled port door and forward assist (or the upper arriving pre-assembled) as a plus, and two more note that it came assembled.
“What I like about this one especially is the small added benefit of it being pre-assembled.”
Most helpful positive review, via OpticsPlanet
Why owners rate it: fit, finish and price
We could read all 80 reviews on the assembled upper listing. Seventy are five stars, eight are four stars, one is three stars and one is two stars, and all 79 reviews in the list say they would recommend it (the featured review shows no recommend field). The review pool is shared by every colour row the listing has sold, and the newest review is dated September 29, 2025, so none is from the past year.
The praise is consistent: a tight lock-up with Aero lowers, a clean finish and value for the money. Two reviewers like that the forward assist pin threads in rather than being a plain roll pin, which matches the threaded roll pin on Aero's feature list.
“the forward assist roll pin is actually a screw that goes in from the top.”
Zachary G. (WA), verified owner, via OpticsPlanet
Tolerances get comments in both directions. One reviewer who bought three M4E1 uppers found the Cerakoted ones very tight on Cerakoted Aero lowers, and the barrel extension tight enough that thermal fitting might be needed. Another, used to tighter premium uppers, wished the tolerances were tighter.
“the barrel extension portions fit most barrels TIGHT, as well.”
Tim (NJ), verified owner, via OpticsPlanet
“I wish the tolerances were a bit tighter but they are definitely in spec.”
johnchip (CT), verified owner, via OpticsPlanet
The honest catches
Colour matching on anodized colours. Four reviewers who bought the OD Green anodized upper describe shade differences against other parts, from slightly lighter to one who calls the result lime-green against a dark lower. Aero warns about this on its own OD Green page: “These finishes are held to different aesthetic standards than parts finished in black anodizing or Cerakote.” The same reviewer notes that black or a Cerakote finish avoids the matching problem.
“my upper is more of a light lime-green”
p51ma (MA), four-star review, via OpticsPlanet
Cosmetic blemishes. Four reviewers report blemishes on the unit they received, including the only two-star review, and one of them paid full price. One reviewer received an upper that would not accept the gas tube; the retailer exchanged it and the replacement was fine.
Tooling and accessories. One reviewer found the upper does not seat in a standard A1/A2 M4 vise block, which matters when you torque a barrel nut to Aero's 50 ft-lbs. One reviewer also found that Strike Industries polymer dust covers do not fit.
“You will either need to purchase a dedicated Aero Precision M4E1 vice-block or get out the Dremel and modify your old vice-block.”
EsDee (NC), verified owner, four-star review, via OpticsPlanet
Coating thickness. One three-star reviewer could not get a 6.5 Grendel bolt carrier group to run in an FDE upper, while a 5.56 bolt carrier group fit fine; another notes Cerakote may need to be removed from a trigger guard pin hole with some trigger guards. The featured review adds that the dust cover is stiff at first.
“the dust cover is really stiff to close at first, needs a bit to break in.”
Most helpful positive review, via OpticsPlanet
Trade-offs, plainly
- It is a receiver, not an upper you can shoot: barrel, barrel nut, gas block and tube, handguard, bolt carrier group and charging handle are all extra.
- The OD Green anodized row can differ in shade from your other parts; Aero says so on its OD Green page, and four OD Green buyers report it.
- Four reviewers received blemished units.
- One reviewer found it needs an M4E1-specific vise block (or a modified one) to install a barrel.
- Fit varies from very tight (Cerakote on Cerakote) to one reviewer who wanted tighter tolerances.
- The owner record is large but more than a year old.
Which M4E1: assembled upper or a complete upper
The retailer sells the M4E1 line as separate listings. Each column below is described from its own listing; the three complete uppers have no exact match on Aero's site that we could find, so their figures are the retailer's. None of the three includes a bolt carrier group or charging handle; the table shows where each listing's own record says so. Aero's pages for two other M4E1 complete uppers carry the same line: “This complete upper does not include BCG or Charging Handle.”
| Spec | Assembled upper (APAR700201AC) | 14.5 in 5.56 (APAR700304M5) | 16 in 5.56 (APAR640251M7) | 10 in .300 BLK (APAR700702M4) |
|---|---|---|---|---|
| What you get | Receiver, port door, forward assist | Upper with barrel, low profile gas block, mid-length gas tube, 12 in M-LOK ATLAS S-ONE handguard, A2 flash hider | Upper with barrel, low profile gas block, mid-length gas tube, 15 in M-LOK handguard, A2 flash hider, barrel nut and wrench | Upper with 10 in barrel, ATLAS R-ONE handguard, flash hider |
| Bolt carrier group and charging handle | Not included (Aero's included list names only the receiver, port door and forward assist) | Not in the retailer's package contents (barrel, gas block, gas tube); four owners confirm | Not included (retailer spec table: Bolt Carrier Group Included: No, Charging Handle Included: No) | Not listed by the retailer; five owners say the bolt carrier group did not come with it |
| Calibre | Barrel not included | 5.56x45mm NATO | 5.56x45mm NATO | .300 AAC Blackout |
| Gas system | Not applicable | Mid length | Mid length | Not stated for this row |
| Twist (retailer) | Not applicable | 1-7 | 1-7 | 1-7 |
| Muzzle thread (retailer) | Not applicable | Not listed | 1/2x28 | 5/8x24 |
| Finish (row priced) | Anodized Black | Anodized Black | Anodized Black | Black Anodized |
| OpticsPlanet rating | 4.8/5 from 80 reviews | 4.6/5 from 26 reviews | 4.5/5 from 25 reviews | 4.4/5 from 24 reviews |
| Price | around $160 | around $570 | around $590 | around $550 |
Each complete-upper listing also sells other finish or handguard rows at different prices; the row priced is the one named in each column. Check the retailer page for shipping restrictions to your state before you order. Owner reviews on each listing are shared across its rows. The newest listed review is from January 2024 on the 14.5-inch listing, March 2025 on the 16-inch and July 2025 on the 10-inch, so these owner records are also more than a year old.

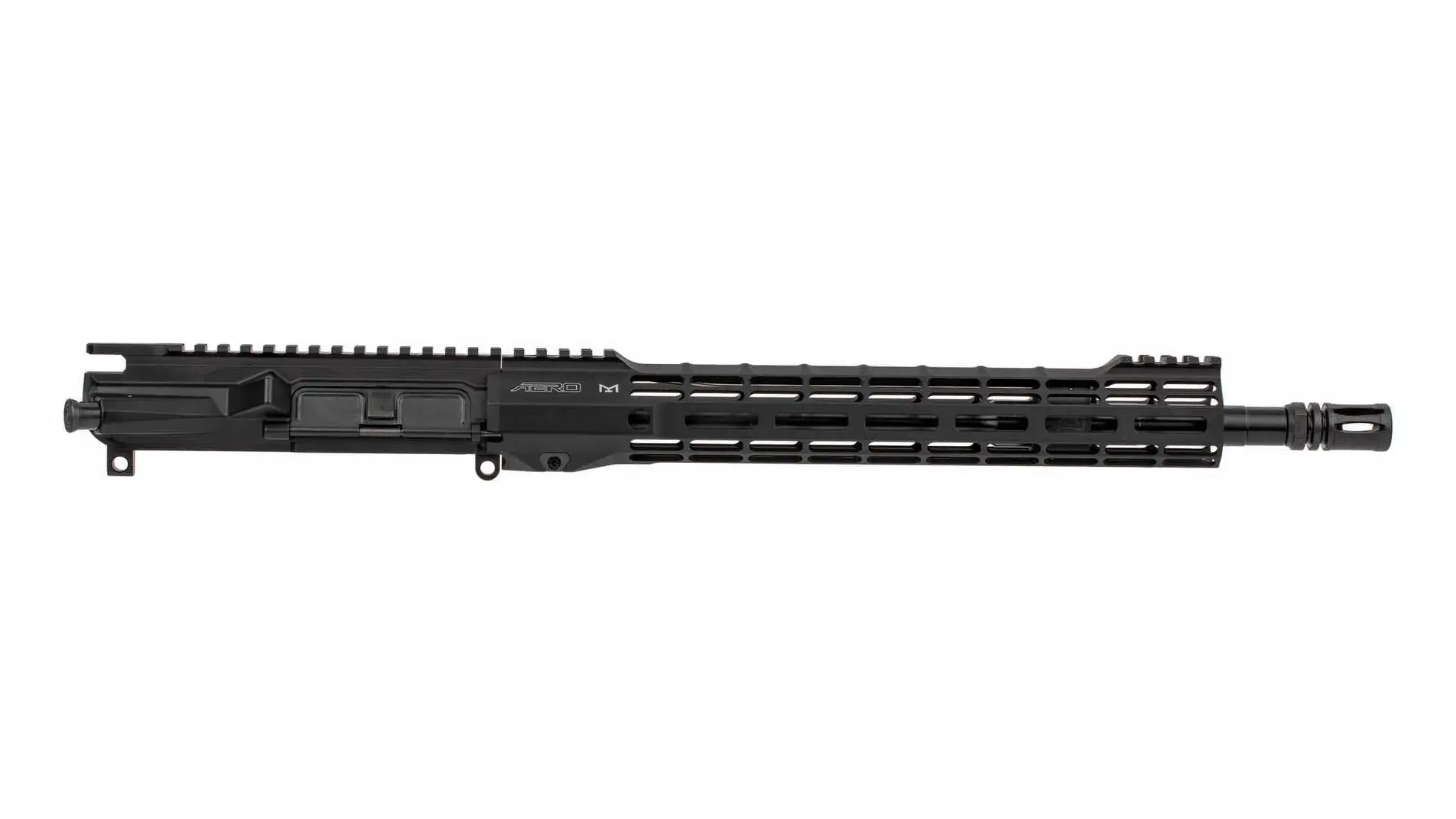

14.5 in 5.56 mid-length with the ATLAS S-ONE handguard
The 14.5-inch upper (APAR700304M5, Anodized Black) pairs a 14.5-inch 4150 CrMoV M4-profile barrel with a mid-length gas system and a 12-inch M-LOK ATLAS S-ONE handguard. On Aero's own page for its 8-inch S-ONE complete upper, the handguard has front and rear Picatinny rail with the centre of the top rail eliminated for weight reduction, the same features the retailer lists here. Seven reviewers call it light and four describe the handguard as slim or thin, and one reports about 3/4 MOA centre to centre with 75 grain HPBT. On heat, one reviewer finds the thin rail gets hot after 20 to 30 quick rounds.
“Hand guard is as slim as it gets but still plenty ergonomic, and super light.”
PT (IA), verified owner, via OpticsPlanet
Of its 26 reviews, 23 are five stars. The three low ones are a one-star buyer who expected a bolt carrier group and charging handle, a two-star reviewer with failures to feed who contacted Aero, and the featured negative review, which reports a barrel with no rifling and hopes it was a one-off. Four reviewers in total say the bolt carrier group and charging handle are not included, including the featured positive review.
“Although it's listed as a complete upper, it doesn't come with BCG or charging handle.”
Most helpful positive review, via OpticsPlanet
Barrel length and the law. The barrel is 14.5 inches and the retailer lists a standard A2 flash hider; a retailer gear-expert answer on the listing says the flash hider is removable. We do not give legal advice. On its own page for a different 14.5-inch M4E1 complete upper (the Enhanced version), Aero writes: “Per the National Firearms Act, the muzzle brake MUST be pinned and welded to achieve the necessary 16" as defined by the ATF for a rifle build.” Check federal, state and local law before you build on any barrel under 16 inches.

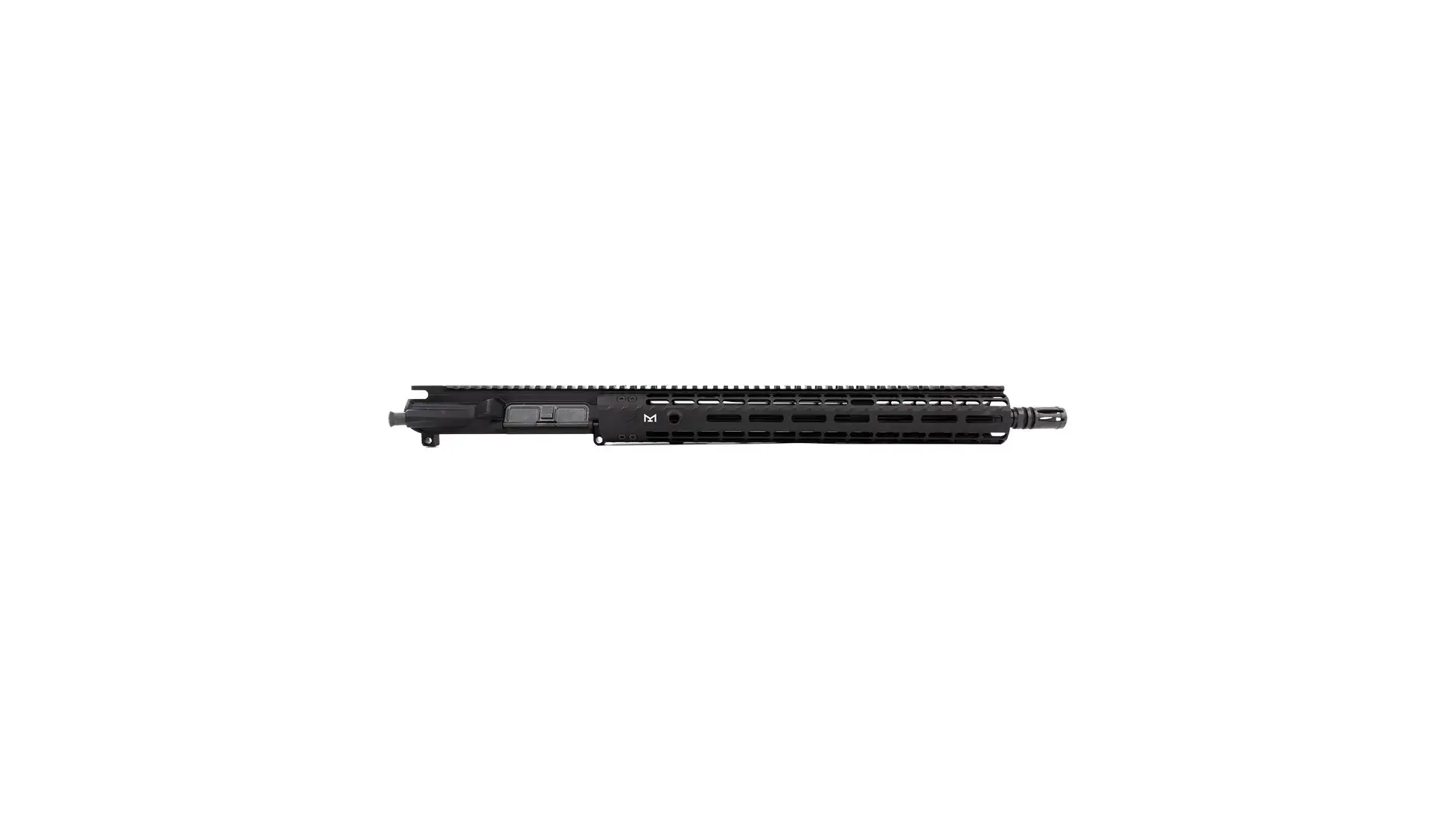

16 in 5.56 mid-length with the 15 in M-LOK handguard
The 16-inch upper (APAR640251M7, Anodized Black; an FDE row is also listed) has a 16-inch Government-profile 4150 CrMoV barrel, a mid-length gas system, 1/2x28 threads and a 15-inch free-float M-LOK handguard. Note what its name leaves out: unlike the other three listings it does not say Threaded, and its feature list says the handguard mounting platform is forged into the receiver and that it “Works with Aero Precision handguards but also fits most BAR-system handguards”, the same wording Aero uses on its 16-inch M4E1 Enhanced complete upper page. If you may want to swap to a standard barrel-nut handguard later, pick a Threaded upper instead. The listing's own specification table says Bolt Carrier Group Included: No and Charging Handle Included: No, even though the description says it comes with everything you need to start shooting.
Of its 25 reviews, 20 are five stars. Three reviewers report the upper not cycling: one bolt seized after eight shots, one did not cycle out of the box, and the featured negative review found the gas tube and gas block misaligned, which took two trips to a professional before it ran. Praise is for light weight, fit and the price; one reviewer who bought the black 15-inch M-LOK version puts it simply.
“Fit and finish is superb.”
Andy R. (VA), verified owner, via OpticsPlanet
“just check that everything is aligned correctly!”
Most helpful negative review (three stars), via OpticsPlanet

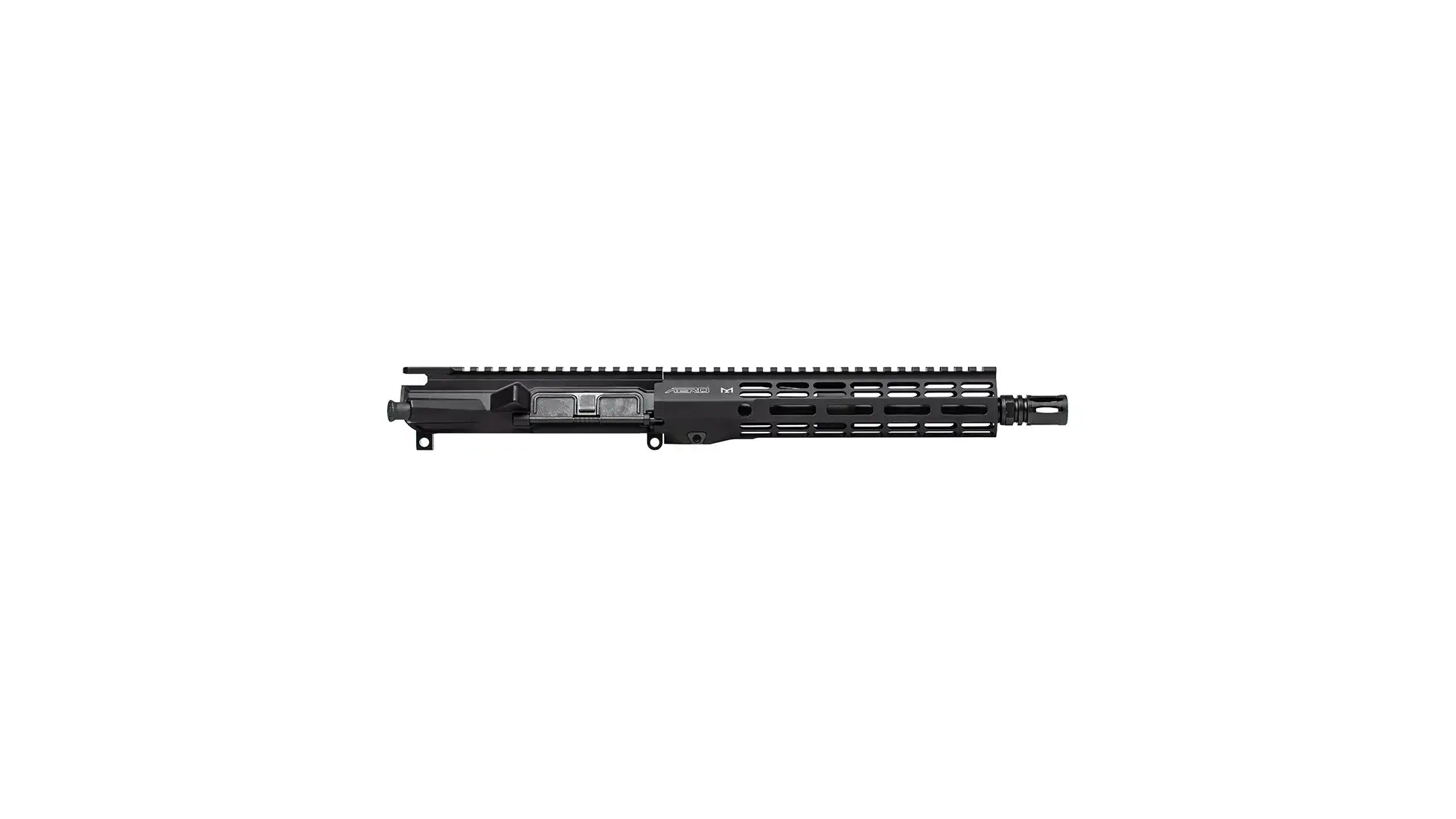

10 in .300 Blackout with the ATLAS R-ONE handguard
The 10-inch .300 Blackout upper we price is the row the listing names first: APAR700702M4, Black Anodized, with the ATLAS R-ONE handguard and, per the retailer's row data, a DRP barrel profile. The row name gives a 1-7 twist and 5/8x24 muzzle threads. Aero's own 15-inch R-ONE handguard page lists a full top Picatinny rail, unlike the S-ONE on the 14.5-inch upper. The same listing also sells an S-ONE row (APAR700302M4) and two FDE rows. The retailer gives a weight of 21 oz, but one owner weighed theirs at over 40 ounces, so we print no weight for this upper.
Five of its 24 reviews point out that the bolt carrier group is not included, and four of them say the charging handle is missing too. On running it, one reviewer shot subsonic and supersonic ammunition without a failure, another had one bolt override in 200 rounds, and one shooting without a suppressor had short strokes with subsonic rounds until they fitted an adjustable gas block and a muzzle brake. One reviewer building a 300 Blackout pistol praises the handguard.
“very impressed with the new Atlas R-1 handguard, as it's smaller than their previous handguard and feels much better in my hand”
Diamond Dave (TX), verified owner, via OpticsPlanet
“was having short strokes and failure to feeds with subsonic rounds.”
TC (FL), via OpticsPlanet
A 10-inch barrel is under 16 inches. We do not give legal advice on how such an upper may be configured; check federal, state and local law before you buy or build.
Key specifications: M4E1 Threaded Assembled Upper, Anodized Black
| Type | Assembled upper receiver: receiver with port door and forward assist installed |
|---|---|
| Row we price | Anodized Black, MPN APAR700201AC |
| Material | Machined from 7075-T6 forged aluminum |
| Weight | 8.65 oz |
| Barrel interface | Threaded to accept a standard AR15 barrel nut |
| Barrel nut torque | 50 ft-lbs |
| Feed ramps | M4 |
| Takedown pin holes | .250 |
| Markings | Laser engraved T-marks |
| Forward assist pin | Threaded forward assist roll pin included |
| Compatibility | Works with standard AR15/M16 components |
| Included | M4E1 Threaded Upper Receiver; port door and forward assist installed |
| Not included | Barrel, barrel nut, gas block and tube, handguard, bolt carrier group, charging handle |
| Warranty | Aero Precision Limited Lifetime Manufacturer Warranty |
Figures are from Aero Precision's product page for the Anodized Black assembled upper; the retailer lists the same 8.65 oz weight and 7075-T6 aluminum. Aero's warranty page says the warranty applies to any firearms, parts and accessories it manufactures, whether or not you are the original purchaser, and continues “as long as we manufacture and support it.” We found no editorial award to claim for the M4E1, so we claim none.
Should you buy it?
- Buy the assembled upper if you are building on an Aero M4E1 lower or any standard AR-15 lower, want to choose your own barrel and handguard, and have (or will buy) an M4E1-compatible vise block and a torque wrench.
- Buy black or a Cerakote row if matching colours matters to you; Aero itself warns on its OD Green anodized page that shades can differ.
- Buy a complete upper if you would rather not install a barrel, and budget for a bolt carrier group and charging handle on top. The 16-inch upper is the only one here with a barrel of 16 inches or more.
- Skip the 16-inch listing if you want a standard barrel-nut handguard later; its listing describes the Enhanced forged handguard platform.
Finishing the rifle? See our best AR stock, best AR-15 magazine and best red dot for AR-15 guides.
FAQ
Is the Aero Precision M4E1 upper any good?
The owner record says yes. OpticsPlanet shoppers rate the M4E1 Threaded Assembled Upper Receiver 4.8 out of 5 across 80 reviews; 70 of the 80 are five stars and every one of the 79 listed reviews says it would recommend the upper. Reviewers praise the fit with Aero lowers, the finish and the price. The repeated complaints are cosmetic: four reviewers report blemishes and four OD Green anodized buyers report shade differences. The newest review we could read is dated September 29, 2025, so the record is more than a year old.
What does Threaded mean on the Aero M4E1?
Aero describes the M4E1 Threaded Upper Receiver as having the same enhanced body profile as its M4E1 Enhanced Upper Receiver but threaded to accept a standard AR15 barrel nut. In practice that means it takes a standard barrel nut and the handguards built for one. The Enhanced version instead has a handguard mounting platform forged into the receiver, and Aero says its R-ONE handguard is not compatible with M4E1 Enhanced Upper Receivers.
Does the Aero M4E1 complete upper come with a BCG and charging handle?
No. The 16-inch listing's specification table says Bolt Carrier Group Included: No and Charging Handle Included: No, the 14.5-inch listing's package contents stop at the barrel, gas block and gas tube, and owners on all three listings confirm it: four reviewers on the 14.5-inch listing, two on the 16-inch and five on the 10-inch .300 Blackout listing bring it up. Aero's own pages for other M4E1 complete uppers say the same. Budget for both parts separately.
What comes with the M4E1 assembled upper receiver?
Aero lists two items: the M4E1 Threaded Upper Receiver, and the port door and forward assist installed. There is no barrel, barrel nut, gas block, gas tube, handguard, bolt carrier group or charging handle. Two of the retailer's colour rows carry the words M-LOK Handguard in their names, but the package contents list only the receiver, port door and forward assist.
Will the M4E1 upper fit a non-Aero lower?
Aero says the upper works with standard AR15/M16 components. Reviewers report pairing it with Anderson, Palmetto and X-15 lowers without trouble, and one says it works with other AR-15 style lower receivers. Fit can be very tight with Aero lowers, especially when both parts are Cerakoted: one reviewer has not needed the lower's tensioning screws at all and had to wear in the pivot and takedown pins.
