AGM Rattler V3 review: the 640 thermal scope that ranges for you

By the OpticVerdict Editorial Team.
Research-based review · Updated 2026-09-29

How we reviewed it: a research-based review built from the retailer listings and specification tables, AGM Global Vision's own product pages and its Rattler V3 announcement, and the five owner reviews on the two OpticsPlanet listings. Where the retailer and AGM disagree on a figure, we say so or leave the figure out. We have not field-tested these units ourselves; the score is our editorial opinion and owner ratings are shown attributed to their source. See how we evaluate.

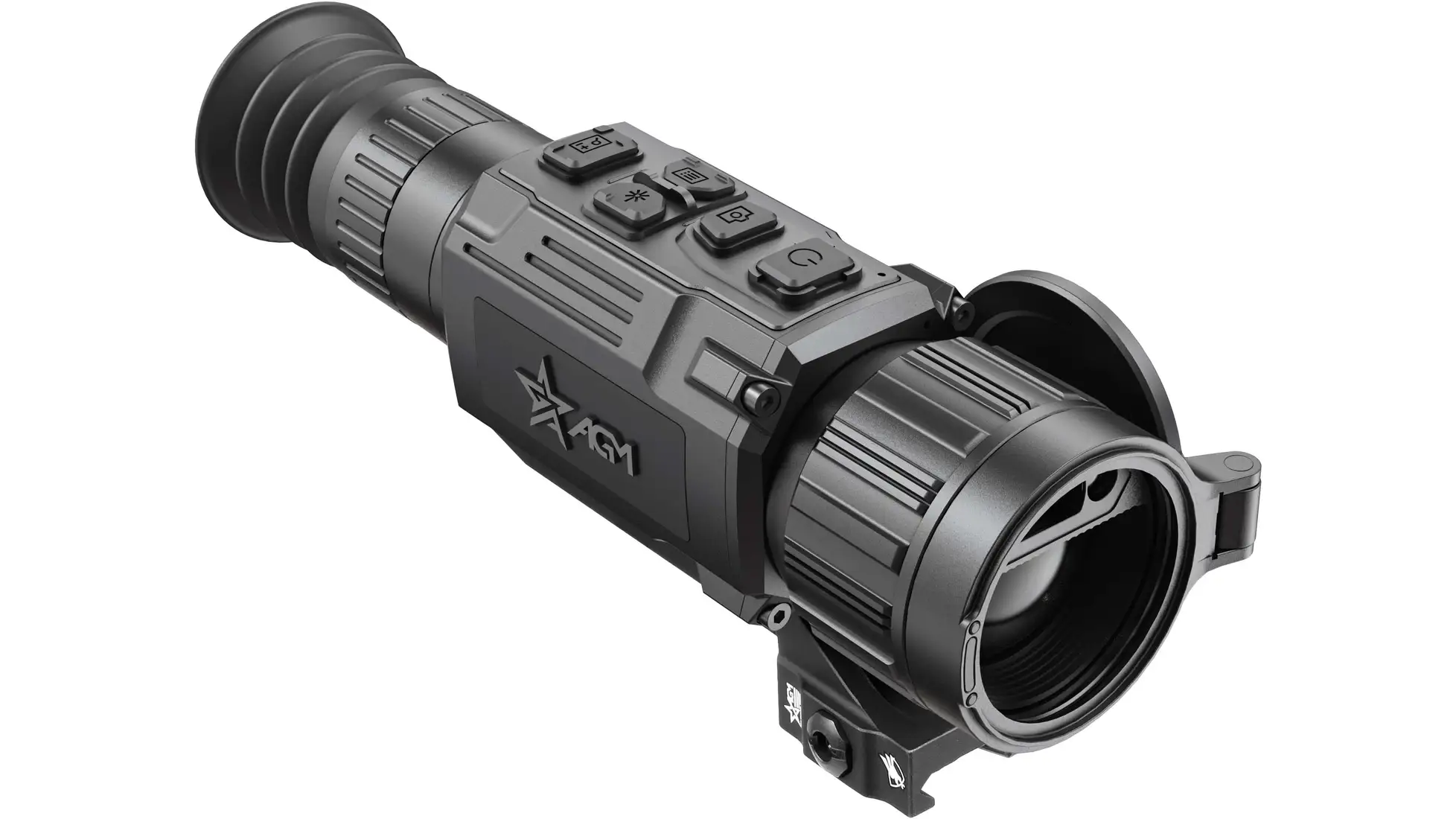

What the Rattler V3 LRF 35-640 is

The model name reads like the Rattler V2 names: 35 is the objective lens in millimeters and 640 is the thermal sensor, 640x512 pixels at a 12 micron pitch. LRF marks the laser rangefinder. This page covers two V3 LRF 640 listings at OpticsPlanet: the 35-640 reviewed here and the 50-640 covered further down.

The 35-640 is a compact scope: 9.3 inches long and 1.6 pounds by the retailer's table, with a 2.5x base magnification and a field of view AGM gives as 12.5 by 10.0 degrees, or 67 by 53 feet at 100 yards. It records video with sound to 64 GB of internal storage, has shot activated recording, and runs a Wi-Fi hotspot. AGM lists six color palettes, from Black Hot and White Hot to Fusion and two monochrome modes, and rates the scope IP67.

What changed from the Rattler V2

AGM's own Rattler V3 announcement lists six new features. Five apply to the 640 models (the sixth, a circular or rectangular view toggle, is for the 384 models), and the first three are the reason to pay the V3 price:

• A more sensitive detector. The V3 uses a sub-15 mK detector, and AGM says the Rattler V3 is the first in its style to be equipped with one. A lower NETD figure means the sensor separates smaller temperature differences, which helps a warm animal stand out from a background of similar temperature.
• A much denser display. The 640 models use a 2560x2560 display; AGM compares that with the 1024x768 displays of the Rattler V2 series.
• A rangefinder in the lens, with a ballistic calculator. AGM calls the integrated in-lens LRF one of the biggest upgrades in the series, and its product pages rate it to 1,000 m and pair it with an on-board ballistic calculator, so the range reading can turn into a hold.
• Shutterless operation. AGM says the V3 corrects the sensor in real time, so the image does not freeze for a moment while the scope recalibrates.
• Red and green monochrome modes. Two new viewing modes join the existing palettes; AGM pitches them as easier on the eyes during long observation.

One thing did not change in a way that costs V2 owners money: AGM says the batteries and battery chargers of the Rattler V2 and V3 are compatible with each other. If you are still choosing between generations, our AGM Rattler V2 guide decodes the 19-256, 25-256 and 35-384 models.

Why owners rate it: a clear image and a range you do not have to guess

The owner record is four reviews on the 35-640 and one on the 50-640, so treat it as a handful of voices, not a verdict. The praise that is there centers on image clarity, including under zoom, and the rangefinder. One reviewer writes:

“Very clear image even when increasing magnification. Features are very useful. Menu is easy to navigate.”

jeremy (SC), reviewer, via OpticsPlanet (35-640)

The rangefinder is at the center of two of the five reviews. A 35-640 reviewer started with a Rattler V2 and moved to the V3 LRF after being unable to judge distance in the dark, and lists a sharp picture as the pro. A 50-640 reviewer who also owns a V2 bought the V3 for longer-range coyote hunting and no longer has to range with a handheld unit and then return to the rifle:

“The included rangefinder and ballistic solution make this a game changer.”

Zach (CO), reviewer, via OpticsPlanet (50-640)

A third 35-640 reviewer says detection reached farther than the advertised range and that the rangefinder seems to work perfectly. That is one reviewer's observation, not a measurement. AGM rates the 35-640 for detection at 2,480 m (2,710 yd); detection means spotting a heat source, and identifying what it is happens at a much shorter distance.

The honest catch: price, battery, digital zoom, a small record

The V3 LRF is a premium thermal, and one of the four 35-640 reviewers lists cost as a con. Power is the second thing to plan for: AGM rates the scope for up to 5.5 hours on one NE-4400 battery. The box includes two batteries and the retailer's feature list includes external power supply compatibility, so a long night means swapping a battery rather than losing the scope, but you do have to swap it.

The magnification figure also needs reading carefully. AGM lists a 2.5x base and a digital magnification range of 2.5x to 20x, so 20x is digital zoom on the same 640x512 sensor, not optical magnification. The dense display helps, and a reviewer reports a clear image when zooming in, but digital zoom adds no detail the sensor did not capture, so the base 2.5x is the sharpest the image gets. Finally, AGM says the product is not exportable outside the United States.

Trade-offs, plainly

• It is a premium thermal scope, well above the price of any Rattler V2 model, and one reviewer names cost as a con.
• Battery life is rated at up to 5.5 hours on one NE-4400; two batteries come in the box, but long sits mean a swap.
• Only 2.5x is optical; the 20x top end is digital zoom, so the image coarsens as you zoom.
• The owner record is five reviews across both listings, too small to say much about long-term reliability.
• It weighs 1.6 lb by the retailer's table, a noticeable addition to a light rifle.

Key specifications (Rattler V3 LRF 35-640)

Rows marked (AGM) come from AGM's own pages; the other rows come from the retailer table and, where AGM states the same figure, agree with it. We do not print a video recording resolution: the retailer gives different figures on the two V3 listings and AGM's pages do not state one. The retailer listing lists a 5-year warranty; we could not read AGM's own warranty terms, so confirm them before you buy.

Which Rattler V3 should you buy?

Rattler V3 LRF 35-640: woods, brush and fast follow-up shots

The version reviewed above. The 35 mm lens and 2.5x base give the wider view of the two, which is what you want when animals are close, cover is thick and you need to pick up a second target quickly. It is also the less expensive of the two and the one with more owner reviews: 4.8/5 across 4 on OpticsPlanet. It runs around $3,500.

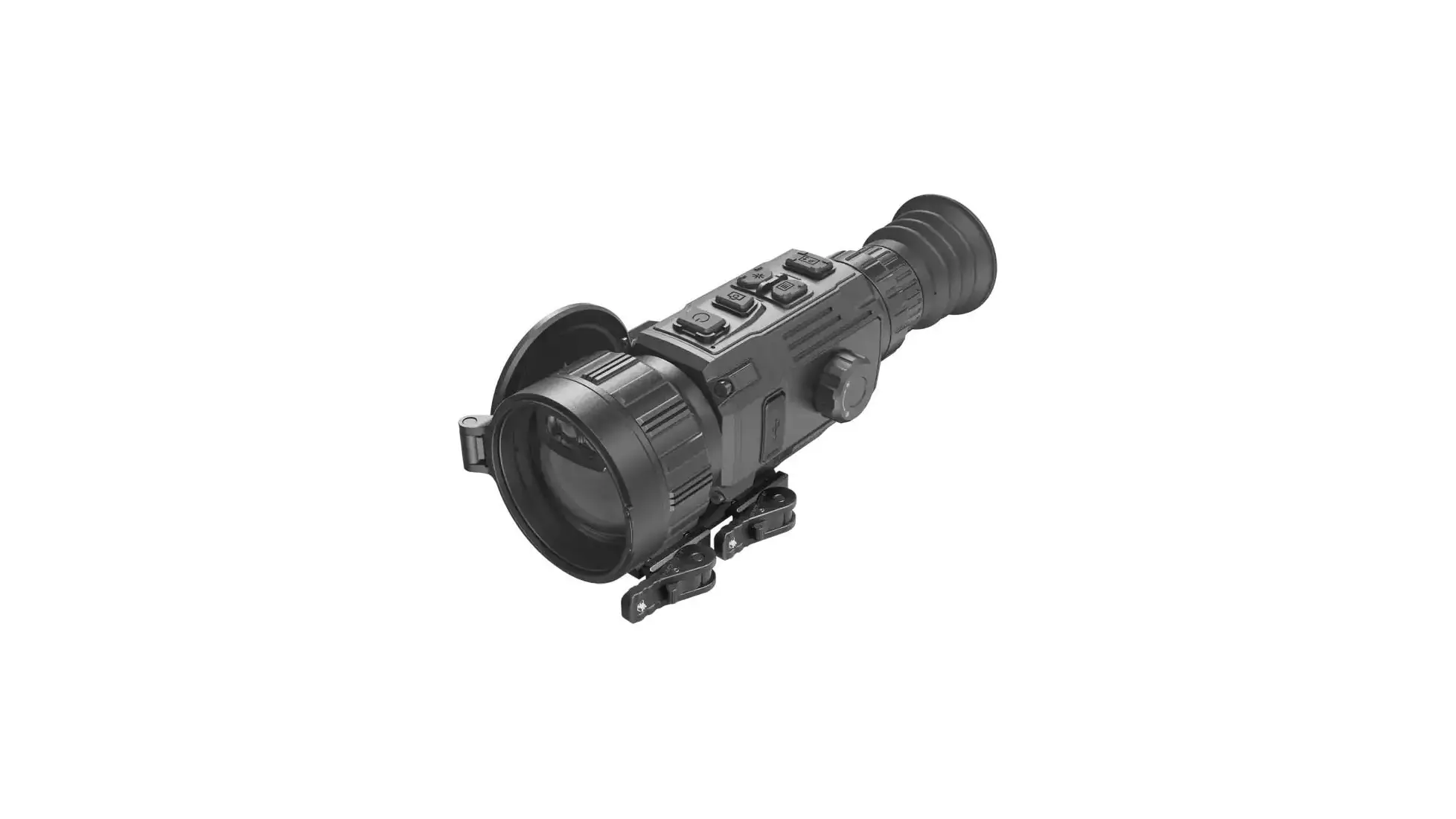

Rattler V3 LRF 50-640: open fields and longer shots

The same 640x512, sub-15 mK sensor, 1,000 m rangefinder and ballistic calculator behind a 50 mm lens. AGM lists a 3.5x base magnification with digital zoom to 28x, a narrower field of view than the 35-640 and a longer rated detection range, and the retailer lists a magnesium alloy body, a QD Picatinny mount and 10 brightness settings. That makes it the pick for open fields and longer shots, where a bigger image at the base magnification matters more than width. AGM lists the same box contents, including two NE-4400 batteries and the ADM mount. Its owner record is a single 5-star review, quoted above, which is not enough to judge it on. It runs around $4,000.

A note on the display: the retailer's 50-640 listing gives 2560x2560 in its specification table and 1920x1080 in its feature list. AGM's own 50-640 page lists a 2560x2560 OLED, and AGM's V3 announcement puts 1920x1080 on the 384 models. We go with the maker. The retailer and AGM also give different detection-range, field-of-view and weight figures for the 50-640, so we print none of them.

What else to consider

• Want a Rattler for less? The AGM Rattler V2 guide covers the 19-256, 25-256 and 35-384, without a built-in rangefinder.
• A handheld scanner from the same maker? Our AGM Taipan V2 review covers four Taipan V2 thermal monoculars.
• Comparing brands? Our best thermal scope guide ranks the field, and best budget thermal scope covers the lower price tiers.
• Hunting predators? See best thermal scope for coyote hunting.
• Keep your day scope? A clip-on thermal mounts in front of it instead.
• New to thermal? Start with thermal vs night vision.
