AGM Rattler-C V2 review: which thermal clip-on fits your day scope

By the OpticVerdict Editorial Team.
Research-based review · Updated 2026-10-07

How we reviewed it: a research-based review built from the three OpticsPlanet listings and their specification tables, AGM's own product page for each version, AGM's Rattler-C V2 collection page and FAQ, its Front Q-R adapter page, its US warranty page and the Rattler-C V2 user manual, and every owner review on the three listings. We have not field-tested these units ourselves; the score is our editorial opinion and owner ratings are shown attributed to their source. Where the retailer's table and AGM disagree, we print AGM's figure and say so. See how we evaluate.

What the Rattler-C V2 is, and how it differs from the Rattler V2 scope

The "C" is the clip-on. AGM's collection page describes it as designed to mount in front of your optic, and AGM's FAQ says a correctly aligned clip-on maintains your rifle's zero. AGM lists a base magnification of 1x for every version: the thermal picture passes into the front of your day scope, and the day scope does the magnifying. AGM also lists a digital magnification range of 1x to 8x on the clip-on itself.

The name is easy to mix up with the AGM Rattler V2 and Rattler V3, which are rifle scopes with their own optical magnification. If you want a standalone thermal scope instead of a clip-on, read our AGM Rattler V2 guide or the AGM Rattler V3 review; nothing on this page is borrowed from them.

The three Rattler-C V2 versions share a 12 micron VOx uncooled detector family, a 50 Hz refresh rate, F/1.0 lenses, a 0.39-inch 1024x768 OLED display, 16 GB of built-in storage, IP67 protection and the same 1000 g/0.4 ms recoil rating, according to AGM's manual. They differ in sensor, lens, sensitivity, range and runtime:

Specifications from AGM's Rattler-C V2 user manual (NETD at 25 C, F# = 1.0; battery life at 25 C with the hotspot off); the 35-384 field of view is the figure on AGM's product page and in the manual. AGM's product page lists the 50-640 at 1.20 lb. Ratings from each OpticsPlanet listing. AGM publishes only a detection range, for a 6-foot object; it publishes no recognition or identification range. In our reading, telling what an animal is takes a closer distance than spotting that something is there, so treat these figures as the outer limit.

Where the retailer differs: the OpticsPlanet title and table for the 19-256 say 20 mK and its table lists a CR123A battery, while AGM's pages and manual say less than 35 mK and an NE-4400 Li-Ion battery. The OpticsPlanet tables list 11.5 hours for the 35-384 and 50-640 (AGM: 11 h and 9 h), and for the 50-640 a 640x512 display (AGM: 1024x768 OLED), 2500 m detection (AGM: 2600 m/yd) and a 0.5 m minimum focus distance (AGM's manual: 10 m to infinity). We print AGM's figures.

Which day scope it suits: AGM's own advice

AGM answers the magnification question in three places, and the answers are not identical. Its clip-on FAQ says “Low base magnification works best (1–4x)” and that a high-power scope such as 5-25x can be used but is not ideal, because the image becomes pixelated. Its product pages say the clip-on is optimized for LPVO and traditional magnified optics, ideally 1x to 6x. Its manual says it can be attached in front of day scopes with magnification up to 8x. Read together: keep your day scope at low power, and the lower the better.

The owners say the same about distance, in their own terms. On the 19-256 listing, one three-star Verified Owner, FIRERACTUAL (MI), writes that “the resolution isn't very good for identifying targets that are more than 100m out” and suggests the next model up for use on a real rifle. A five-star Verified Owner on the same listing, Jill (MI), writes:

“My applications are for 50-200 yards and it works great.”

Jill (MI), Verified Owner, Rattler-C V2 19-256, via OpticsPlanet

Mounting: the rail mount is in the box, the scope adapter is not

AGM says the box includes an ADM Picatinny mount with a 1.5-inch centerline height, and that mounting the clip-on directly to a daytime optic requires a compatible Front Q-R Adapter, sold separately. AGM's manual lists the ADM QR mount as U.S. only. So there are two ways to run it: on the rail in front of your scope with the included mount, or clamped onto the scope's objective with the adapter you buy.

Size the adapter by the bell, not the lens. AGM's adapter page tells you to measure the outside diameter of your scope's objective bell housing and states the adapter size is based on that measurement, not the advertised objective lens size. It allows about 0.4 mm of adjustment, so measure carefully. The US page lists 30, 40, 42, 44, 50, 56, 58, 60, 62, 64 and 65 mm adapters, and the manual gives the clip-on's adapter thread as M52 x 0.75 mm. The manual also says the clip-on cannot be attached to scopes that have focus rings on the objective lens housing, so check your scope before you order.

Two of the three reviewers on the 35-384 listing write about the mount or the adapter. Conquest87tsi, a four-star Verified Owner, says “The clip on bracket for attaching the thermal to the front of a scope is NOT included.” Dom, a three-star reviewer, titles their review “Great scope with a flawed mount”, writes that “the ADM QD mount needs work” and adds “I think the one I got with the Rattler is just a fluke.” On the 19-256 listing, Dl says the unit “Comes with a vertical mount not a cantilever mount, but it works fine”, and on the 50-640 listing Jax wants a lower second mount for typical AR optics because “the one it comes with is very high.”

Alignment, not zeroing: the clip-on's own reticle

AGM's FAQ puts it plainly: “You don’t “zero” it like a traditional scope”; you align (collimate) it in front of an already-zeroed day optic. The manual describes two tools for that. Image Alignment shifts the thermal picture in four directions to cancel the offset between the clip-on and the scope, with five calibration profiles (A to E) and a horizontal reference line for leveling the clip-on against the day reticle. The Zeroing menu turns on a clip-on reticle, with a choice of type and black, white, red or green color, and in the manual's words “The reticle can be used to correctly position the clip-on relative to the scope when using the front adapter”.

In AGM's quick-positioning steps the clip-on reticle is a reference, not the aiming point. The manual says to line the clip-on reticle up with the day scope mark, save it, and the next time you mount the clip-on, move it until the two line up again, then turn off the clip-on reticle and use the day scope reticle to aim. It also suggests leaving the front adapter on the scope when you remove the clip-on, so its exact position is kept. Jill, on the 19-256 listing, writes “Truly the agm was easy to line up with my scopes crosshairs.” AGM's manual also recommends an eyecup on the day scope's eyepiece.

Features: recording, app and handheld use

AGM's manual lists four palettes (Black Hot, White Hot, Red Hot and Fusion), Hot Track, stadiametric distance measurement, video and audio recording to the 16 GB built-in storage, and Shot Activated Recording, which the manual says starts recording 10 seconds before the recoil activation and ends 10 seconds after. A Wi-Fi hotspot connects the clip-on to AGM's AGM Connect app for iOS and Android. Dom, on the 35-384 listing, found the app's connection to their Android phone “a bit clunky” and got it working in airplane mode; that is one reviewer's report.

Handheld use needs an extra part. AGM's FAQ says you need a conversion lens cap/eyecup accessory to use it as a handheld, and its manual calls the eyepiece optional and describes a separate Monocular Mode. Dom writes that the eyepiece “will only enable you to use it as a monocle”, and Jax lists an eyepiece first among the accessories they wish had been in the 50-640 box.

Battery, warranty and export

Battery. Each version runs on one replaceable NE-4400 Li-Ion battery, and AGM puts two in the box, so the second is a spare rather than double runtime in the unit. AGM rates 11.5, 11 and 9 hours at 25 C with the hotspot off and lists 5 VDC, 2 A external power over USB Type-C.

Warranty. AGM's US warranty page gives five years from the date of purchase for eligible AGM products bought in the United States on or after January 1, 2023, extended only to the original purchaser; the three-year exceptions it lists do not name the Rattler-C V2. Close-out and as-is merchandise is not covered, and the manual says the customer must submit AGM's product registration form to validate the warranty.

Export. AGM's product pages state “THIS PRODUCT IS NOT EXPORTABLE OUTSIDE THE UNITED STATES.” The OpticsPlanet cart asks buyers to confirm they are a U.S. person who does not intend to export it.

Trade-offs, plainly

• The Front Q-R Adapter for clamping to a scope is sold separately and must match your objective bell's outside diameter.
• The manual says it cannot be attached to scopes with focus rings on the objective lens housing.
• AGM's own advice keeps the day scope at low power (1-4x best per its FAQ), so it is a poor match for a high-power precision scope.
• The 19-256 is rated less than 35 mK by AGM, and one Verified Owner on that listing finds identification weak beyond 100 m.
• Runtime drops as the sensor grows: 9 hours for the 50-640 by AGM's rating, on one battery at a time.
• The handheld eyepiece is an optional extra.
• Short owner record on every listing: 4, 3 and 1 reviews, none newer than December 2025.

Key specifications (Rattler-C V2 19-256)

Marked (AGM) from AGM's Rattler-C V2 19-256 product page, (AGM manual) from the Rattler-C V2 user manual. The OpticsPlanet table for this listing gives the same field of view, weight, IP67 rating, focus range and 1000 m detection, and differs on NETD and battery type as noted above.

Which configuration should you buy?

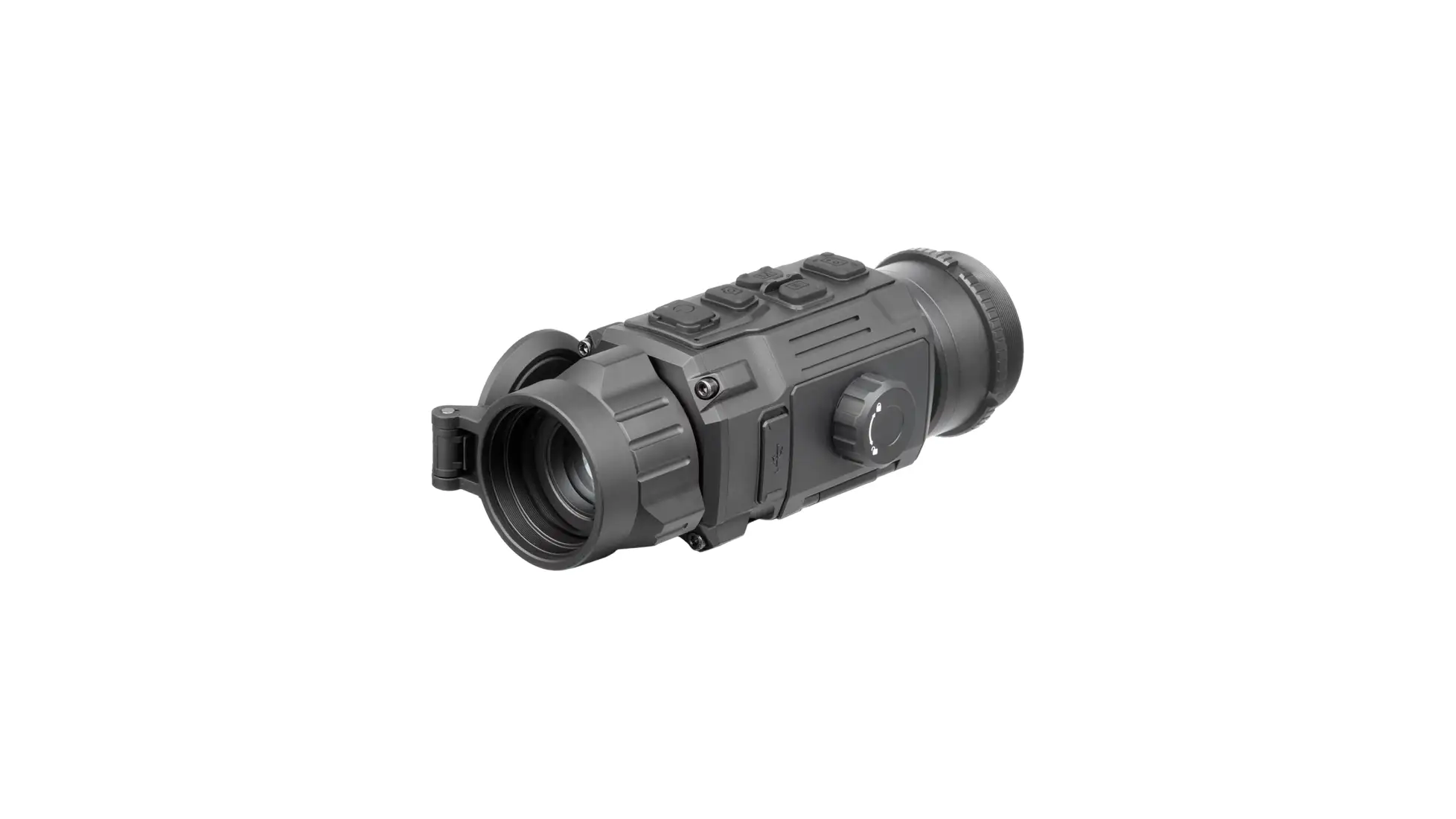

Rattler-C V2 19-256 (314208560103R921): the entry clip-on

The version reviewed above: a 256x192 sensor behind a 19 mm lens, the widest field of view of the three at 9.3 x 6.9 degrees, the closest focus at 0.5 m and the longest runtime, 11.5 hours, by AGM's figures. AGM rates it less than 35 mK and 1000 m/yd detection for a 6-foot object. Reviewers rate it 4.5/5 across 4 OpticsPlanet reviews, three five star and one three star; three carry a Verified Owner tag. Dl calls it “outstanding” for its price range, and the three-star review is FIRERACTUAL's resolution point above. It runs around $900.

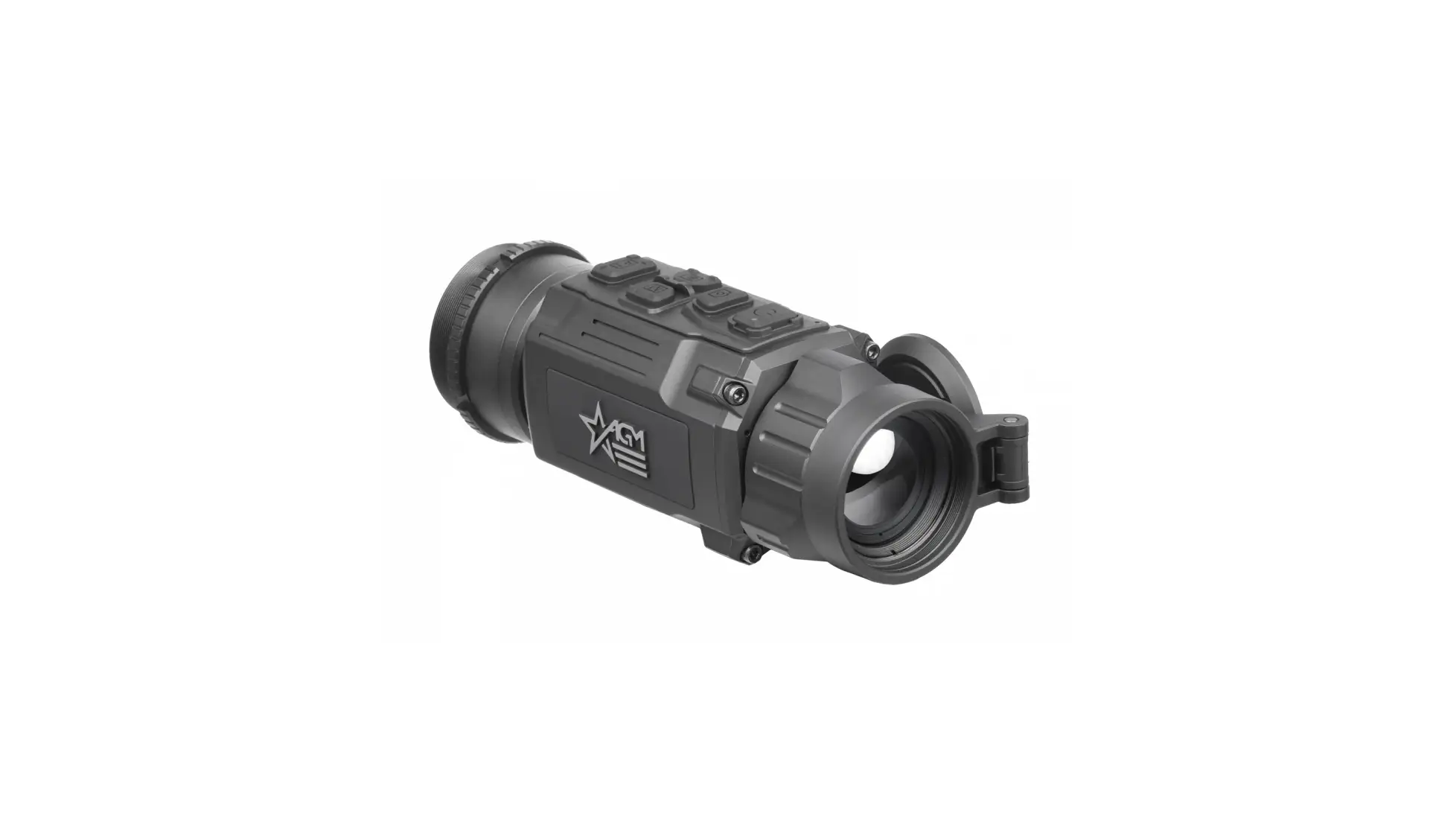

Rattler-C V2 35-384 (314205560205R561): the middle step

A 384x288 sensor behind a 35 mm lens, rated less than 20 mK, with 1800 m/yd detection for a 6-foot object, a 7.5 x 5.6 degree field of view, focus from 2 m and 11 hours of runtime, by AGM's figures. Reviewers rate it 4.0/5 across 3 OpticsPlanet reviews: one five star, one four star and one three star. Two of the three are about the mount and the adapter, as described above; Dom also writes “Love the Rattler v2 clip-on as far as image and performance.” Tank (AR), a five-star Verified Owner, lists night hunting and observation as its best use. It runs around $2,000.

Rattler-C V2 50-640 (314205560206R561): the top of the line

A 640x512 sensor behind a 50 mm lens, rated less than 20 mK, with AGM's longest detection rating of the three, 2600 m/yd for a 6-foot object, and an 8.8 x 7.0 degree field of view. The trade-offs are the shortest runtime, 9 hours, the longest close-focus limit, 10 m, and the largest body at 196 x 73 x 68 mm, by AGM's figures. The listing holds one OpticsPlanet review, four stars, from Jax (TX), a Verified Owner, who praises clarity, build and features such as shot recording and color palettes, writes “No complaints on built or quality or clarity”, and is disappointed that the eyepiece, a lower second mount and a scope bell mount were not included. It runs around $3,600.

Should you buy it?

Buy a Rattler-C V2 if you already own a low-power day scope you trust, want thermal at night without giving up its reticle and glass, and are ready to measure your objective bell and buy the matching adapter, or to run the included rail mount. Pick the version by how far you need to see and how long your nights are: the 19-256 for close work and the longest runtime, the 35-384 for a sharper sensor and more reach, the 50-640 for the most detail and range. Skip it if your day scope is a high-power optic, which AGM's FAQ calls not ideal, or has a focus ring on the objective lens housing, which AGM's manual says the clip-on cannot be attached to.

What else to consider

• Comparing clip-ons? Our best clip-on thermal guide sets the SIG SAUER ECHO CV25, two ATN TICO 6 versions (the 1x25 and the 1x50) and this Rattler-C V2 35-384 against each other.
• Another three-version clip-on line? The ATN TICO 6 review covers ATN's 256, 384 and 640 clip-ons and which day scope each suits.
• Want a thermal scope instead? The AGM Rattler V2 guide decodes AGM's thermal rifle scopes, and the best thermal scope guide covers the wider field.
• Only want to scan? A handheld unit may suit you better; see best thermal monoculars.
