Wilcox RAID Xe review: a laser aiming device built for military and police

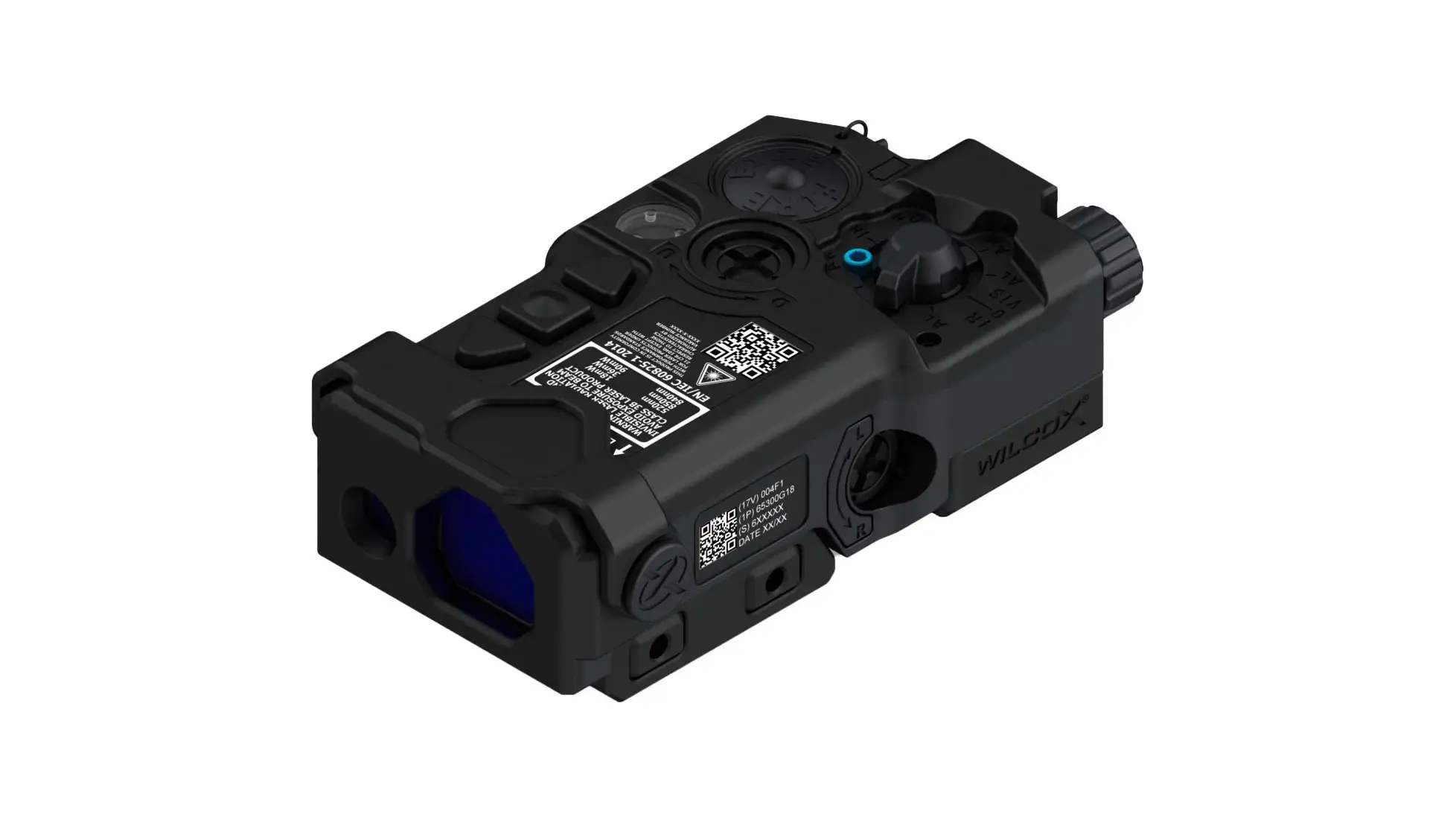

Our verdict: 4.0/5. The Wilcox RAID Xe is a rifle-mounted laser aiming and illumination device: a visible aiming laser, an IR aiming laser, an adjustable IR illuminator and a fixed IR room illuminator share one optical bench, so one windage and one elevation adjustment zero all of them. Wilcox describes it as built for "MIL-LE Operators", and that shapes everything about it. The listing and Wilcox's manual cover three models. The Low Power red 65300G12 is class 3R in Wilcox's manual; the High Power red 65300G14 and green 65300G18 are class 3B, and Wilcox's high power data sheet (G14 and G18 only) says the FDA restricts the sale of high powered lasers to military and law enforcement agencies only. On paper it is compact (under 6.88 oz with battery, per Wilcox) and runs on one CR123. The catches: a very high price, a one-year warranty, and almost no owner data to go on. Want a white light in the same unit? See our Holosun IRIS 3 vs IRIS 4 comparison, or the larger Steiner DBAL-D2 with an LED IR illuminator.
OpticsPlanet shows 5.0/5 from a single review. The version we card is the Red Beam Low Power, Black row, MPN 65300G12-B, at around $3,400; the High Power rows cost more and are in the table below. Check price and availability on OpticsPlanet.
How we reviewed it: a research-based review built from Wilcox's own low power and high power product pages, its low power and high power technical data sheets, its operator's manual for the G12, G14 and G18 models, a Wilcox news release, the retailer listing, and the one owner review on OpticsPlanet. We have not mounted or used a RAID Xe ourselves; the score is our editorial opinion and the owner rating is shown attributed to its source. Claims we could not confirm in Wilcox's own documents are left out. See how we evaluate.
What the RAID Xe is
Wilcox's Low Power product page calls the G12 "an aiming module built for MIL-LE Operators carrying tactical rifles in dynamic, low-light environments." Its High Power product page uses the same sentence but calls the RAID Xe a "high-power aiming module". The manual describes a multi-laser, weapon-mounted pointing, aiming and illumination system with four emitters: visible (VIS) and near infrared (NIR) aiming lasers "for target acquisition in day or night conditions", an NIR long range illuminator whose beam you widen or tighten with a focus wheel, and an NIR short range room illuminator with a fixed 40 degree flood.
The point Wilcox makes most is the shared bench. Both its product pages say the co-aligned optical bench maintains "one zero across all emitters under recoil", and both its data sheets say the bench is aligned to the weapon by one windage and one elevation adjustment. The unit mounts directly to a 1913 Picatinny rail with two thumbnuts, at the 9, 12 or 3 o'clock position (Wilcox recommends 12 o'clock). It has a small OLED display, five selectable pulse modes, and a built-in maintenance counter that, per the manual, keeps a total round count over the unit's lifetime.
It is not a sight and not a white weapon light: there is no visible flashlight in it. If you want a white light on the same rifle, see our best rifle light guide.
Which RAID Xe is this? Low Power vs High Power
The OpticsPlanet listing sells four rows. The row we card is the one the listing fronts: Red Beam Low Power, Black, 65300G12-B. Wilcox's manual names the three models as 65300G12 RAID Xe Low Power (Red Laser), 65300G14 RAID Xe High Power (Red Laser) and 65300G18 RAID Xe High Power (Green Laser).
| Row (as the retailer names it) | MPN | Laser class (Wilcox manual) | Price |
|---|---|---|---|
| Red Beam Low Power, Black (the version we card) | 65300G12-B | 3R | around $3,400 |
| Red Beam High Power, Black | 65300G14-B | 3B | around $3,500 |
| Red Beam High Power, Tan | 65300G14-C | 3B | around $3,500 |
| Green Beam High Power, Tan | 65300G18-01-C | 3B | around $3,700 |
The retailer's rows also carry laser output labels (3 mW, 75 mW and 12 mW) without saying which emitter they describe, so we print Wilcox's per-emitter figures below instead. The retailer calls the -C rows Tan; Wilcox's data sheet calls the -C finish Coyote. The one owner review is shared by the whole listing. Confirm the row in your cart before you order.
Laser output, by Wilcox's numbers
The models share a housing but not their lasers. These are the maximum outputs from Wilcox's technical data table in the operator's manual; each emitter has a high and a low setting.
| Emitter | G12 Low Power (red) | G14 High Power (red) | G18 High Power (green) |
|---|---|---|---|
| Visible aiming laser | Red, 640 nm, under 4.3 mW (high), under 0.7 mW (low) | Red, 660 nm, 90 mW (high), under 0.7 mW (low) | Green, 520 nm, 18 mW (high), under 0.7 mW (low) |
| IR aiming laser | 850 nm, under 5 mW (high), under 0.7 mW (low) | 850 nm, 36 mW (high), under 0.7 mW (low) | 850 nm, 36 mW (high), under 0.7 mW (low) |
| Long range variable IR illuminator | 850 nm laser, 32 mW (high), under 0.7 mW (low) | 850 nm laser, 90 mW (high), under 0.7 mW (low) | 850 nm laser, 90 mW (high), under 0.7 mW (low) |
| Short range fixed IR (room) illuminator | 870 nm, 45 mW, 40 degree field of view | 870 nm, 45 mW, 40 degree field of view | 870 nm, 45 mW, 40 degree field of view |
| Laser class (Wilcox manual) | Class 3R | Class 3B | Class 3B |
Wilcox's manual also lists nominal G12 outputs that sit below these maximums, and says that on the G12 the lasers are pulsed. Wilcox's low power data sheet lists the G12's nominal outputs as 3 mW red (640 nm), 3.5 mW IR aiming and 32 mW IR illuminator, while the manual's G12 table gives 25 mW nominal for that illuminator. For the adjustable IR illuminator, the manual's laser tables give 840 nm for units made before May 27, 2025 and 850 nm for units made on or after that date, for the G12 and for the G14 and G18. The high power data sheet lists nominal outputs for the G14 and G18 (75 mW red, 18 mW green, 30 mW IR aiming) and says nominal output is subject to a 10 percent tolerance.
What the low power model gives up is output: Wilcox rates its visible laser, IR aiming laser and long range IR illuminator far lower than the G14's and G18's. Every model still has the same 45 mW, 40 degree room illuminator and the shared bench. The manual also describes a Blue High Power Lockout Screw that stops the mode knob from reaching the high power settings, and tells you to keep it in place when high power operation is not intended.
Who can buy it: what Wilcox and the retailer print
This section is not legal advice. It quotes the documents and nothing more.
- Wilcox's manual, safety summary: "The RAID Xe G12 Models feature class 3R lasers with a maximum output power of 32 mW." The same page says the G14 and G18 models "feature class 3B lasers with a maximum output power of 90 mW."
- Wilcox's high power data sheet (G14 and G18 only): "U.S. Food and Drug Administration restricts the sale of high powered lasers to military and law enforcement agencies only." Wilcox's low power (G12) data sheet does not carry this sentence.
- Wilcox's manual (one manual for the G12, G14 and G18), under the heading Federal Restrictions on Class 3B Weapon Sights: "The sale of this product is restricted to Federal, State, or local government law enforcement agencies only, through a direct purchase order and shall not be sold to individual personnel of these agencies or organizations." The heading names class 3B; the same manual classes the G12 as 3R.
- Both Wilcox data sheets (low power and high power), on export: "Export of this product is regulated by the U.S. Department of State in accordance with guidelines of ITAR per Title 22, Code of Federal Regulations, Parts 121-128."
- The OpticsPlanet listing shows a Government Export Restriction notice.
Wilcox's manual adds that, inside the United States, State and Federal OSHA require class 3B laser products to be operated under a formal laser safety program, and that compliance is the sole responsibility of the purchaser/user. Before you order any row, ask the retailer and Wilcox what applies to you.
Controls and the keypad
Wilcox's manual lists a Three Button Keypad with a 12 inch single cable, and a rail adapter, among the RAID Xe's major components, with a dual cable keypad as an option. Both its data sheets say the ERGOCTO Xe keypads provide three user-defined functions regardless of switch position. The OpticsPlanet package contents line names only the laser, so confirm what ships before you order. The one owner on OpticsPlanet does mention a keypad in the box and the menus behind it:
“Combine all that with the included ERGOCTO Xe Keypad and you have three buttons with all the commands you will ever need since, this thing is programable.”
sds (CA), verified owner, five-star review, via OpticsPlanet
The same owner's only listed downside is the keypad mount. They added Picatinny sections to their M-LOK handguard to get it into a comfortable position:
“The mounting for the keypad is at an awkward angle from the picatinny rail.”
sds (CA), verified owner, via OpticsPlanet
What the one owner review says
OpticsPlanet shows one review for the whole listing: five stars, from a verified owner, dated June 22, 2024, so more than a year old. It does not name the row they bought; they call it "a civilian power unit". One review is a single person's experience, not a pattern. Beyond the keypad points above, they describe what they get starting in low power mode, in their words "a vis and IR laser, the lower power, focusable VCSEL illuminator and an IR flood light", and say it can be used effectively at short range without the high-power features.
“Even with a civilian power unit this thing can be quite bright.”
sds (CA), verified owner, via OpticsPlanet
They also raise the price: "If you can stomach the price tag and can get your hands on one, this is the LAM to have."
Battery, weight and build
The RAID Xe runs on one CR123 lithium battery, and Wilcox recommends the SureFire CR123. Wilcox prints two run-time figures. Both its low power (G12) and high power (G14, G18) data sheets say approximately eight hours of product usage at max settings. Its manual's run-time table, which gives one figure for all three models, estimates under 4 hours at every listed temperature, tested in Dual High Mode, and says to expect longer run times in other modes. The retailer lists 8 hours. Plan around the lower number if you run it hard.
Wilcox's manual gives an operational weight, with battery, of less than 6.88 oz (195 g) and a cubic size of less than 9 cubic inches, waterproofing to 1 meter for 60 minutes, and an operating range of -4 to 140 F. Both data sheets list boresight retention of under 0.5 mrad. Wilcox publishes these as manufacturer figures; we have not measured them.
Military use, per Wilcox
In a news release dated May 13, 2024, Wilcox announced a contract to supply the RAID Xe to the Dutch Armed Forces, awarded in late 2023 and covering what it calls "a substantial quantity". The release does not name a model or part number (Low Power or High Power) and gives no unit count.
The warranty
Wilcox's manual gives a limited warranty against defects in material and workmanship for one year from the date of original shipment from Wilcox. It applies only to products bought directly from Wilcox or an authorized reseller, excludes items bought on online marketplaces such as eBay, Craigslist or Amazon, and has the product returned at the user's expense. The manual also says the warranty is void if the laser-engraved date of manufacture is defaced or altered. For a device at this price, one year is short; confirm with the retailer that it is an authorized Wilcox reseller.
Trade-offs, plainly
- The price is very high, and the High Power rows cost more than the Low Power row we card.
- Wilcox's documents print sale-restriction wording for class 3B lasers and an ITAR export sentence; read the section above before you order any row.
- The Low Power G12 has far less visible laser, IR aiming laser and long range IR illuminator output than the G14 and G18, by Wilcox's own figures.
- Wilcox prints two very different run-time figures for one CR123: about 8 hours at max settings (both data sheets), or under 4 hours in Dual High Mode (manual).
- The warranty is one year, and only for purchases from Wilcox or an authorized reseller.
- The one owner found the keypad mount sits at an awkward angle on the rail.
- There is a single owner review on OpticsPlanet, from 2024, which does not name its row.
Key specifications
| Product | Wilcox RAID Xe ruggedized aiming/illumination device, enhanced (Wilcox part numbers 65300G12, 65300G14, 65300G18) |
|---|---|
| Version carded | Red Beam Low Power, Black, MPN 65300G12-B (the listing also sells two High Power red rows and a High Power green row) |
| Emitters | Visible aiming laser, IR aiming laser, long range variable IR illuminator and short range fixed IR (room) illuminator on one co-aligned optical bench |
| Zero | One windage and one elevation adjustment for the whole optical bench |
| Weight | Less than 6.88 oz (195 g), with battery |
| Size | Less than 9 cubic inches |
| Mount | Built-in rail mount for MIL-STD-1913 or STANAG 4694 rails, two thumbnuts; 9, 12 and 3 o'clock positions, 12 o'clock recommended |
| Battery | One CR123 lithium |
| Run time | Approximately 8 hours at max settings (low power and high power data sheets); under 4 hours in Dual High Mode (manual table, one figure for all three models) |
| Controls | Mode selection knob, on-unit buttons, 72 x 40 pixel OLED display, keypad port for ERGOCTO Xe keypads and control grips |
| Pulse modes | Five selectable pulse modes |
| Water resistance | Waterproof to 1 meter for 60 minutes |
| Operating temperature | -4 to 140 F (-20 to 60 C) |
| Finish | Black or Coyote Brown (Wilcox); the retailer calls the -C rows Tan |
| Warranty | One year limited, from original shipment, authorized sale only (Wilcox manual) |
Specifications are Wilcox's (low and high power product pages and data sheets, and the operator's manual) unless marked as the retailer's. No editorial award is claimed.
Should you buy it?
- Buy the Low Power G12 if you run night vision, want a visible laser, an IR laser and two IR illuminators on one bench with one zero, and can live with class 3R output and the price, after confirming with the retailer that it can sell you one.
- Look at the High Power G14 or G18 only after confirming with the retailer and Wilcox that you can buy one; read the section above first.
- Think twice if you want a white light in the same unit, a longer warranty, or a product with a deep owner record to read. Our Holosun IRIS 3 vs IRIS 4 comparison covers a different laser device family, and the IRIS 4 adds a white light. If size and weight matter less to you, our Steiner DBAL-D2 review covers a larger green laser aiming device with an IR laser and an LED IR illuminator.
Still choosing the night vision that goes with it? See our best night vision goggles and best night vision monocular guides.
FAQ
What is the difference between the low power and high power Wilcox RAID Xe?
Wilcox's operator's manual for the G12, G14 and G18 covers three models. The 65300G12 is the Low Power red laser, which Wilcox's manual says features class 3R lasers with a maximum output power of 32 mW. The 65300G14 (High Power red) and 65300G18 (High Power green) feature class 3B lasers with a maximum output power of 90 mW. In Wilcox's technical data, the G12 visible red laser tops out under 4.3 mW at 640 nm, the G14 red at 90 mW at 660 nm and the G18 green at 18 mW at 520 nm, and the long range IR illuminator goes from 32 mW on the G12 to 90 mW on the G14 and G18.
Can anyone buy the high power RAID Xe?
We do not give legal advice, so here is only what the documents print. Wilcox's high power data sheet says: "U.S. Food and Drug Administration restricts the sale of high powered lasers to military and law enforcement agencies only." Wilcox's low power (G12) data sheet does not carry that sentence. Wilcox's manual, which covers all three models, says under the heading Federal Restrictions on Class 3B Weapon Sights that the sale of this product is restricted to Federal, State, or local government law enforcement agencies; the same manual classes the G12 as 3R and the G14 and G18 as 3B. The OpticsPlanet listing shows a Government Export Restriction notice. Ask the retailer and Wilcox what applies to you before you order any row.
How much does the Wilcox RAID Xe weigh?
Wilcox's manual lists an operational weight, with battery, of less than 6.88 oz (195 g) and a cubic size of less than 9 cubic inches. The manual gives one figure for all three models.
What battery does the RAID Xe use and how long does it last?
One CR123 lithium battery; Wilcox recommends the SureFire CR123. Wilcox gives two run-time figures. Both its low power (G12) and high power (G14, G18) data sheets say approximately eight hours of product usage at max settings. Its manual's run-time table, which does not split the figure by model, estimates under 4 hours, tested in Dual High Mode, and says to expect longer run times in other modes. The retailer lists 8 hours.
Does the RAID Xe come with a remote pressure pad?
Wilcox's manual lists a Three Button Keypad with a 12 inch single cable and a rail adapter among the RAID Xe's major components, and a dual cable keypad as optional, and both Wilcox data sheets caption an illustration with an included ERGOCTO Xe keypad on a 12 inch cable. The OpticsPlanet package contents line names only the laser, while its one owner review mentions "the included ERGOCTO Xe Keypad". Confirm what ships with the retailer before you order.
What warranty does the Wilcox RAID Xe have?
Wilcox's manual gives a limited warranty against defects in material and workmanship for one year from the date of original shipment from Wilcox. It covers only products bought directly from Wilcox or an authorized reseller, says items bought on online marketplaces such as eBay, Craigslist or Amazon are not eligible, and has the product returned at the user's expense.
