Steiner ATLAS review: five emitters in a light magnesium box, with a short battery life

By the OpticVerdict Editorial Team.
Research-based review · Updated 2026-10-08

How we reviewed it: a research-based review built from Steiner's ATLAS product page, its two ATLAS sell sheets and its warranty page, Steiner's DBAL-D2 product page for the comparison, the Guns & Ammo review of the ATLAS, the OpticsPlanet listing and the one review on it. We have not mounted or used an ATLAS ourselves; the score is our editorial opinion and the owner rating is shown attributed to its source. Where Steiner and the retailer disagree, Steiner's figure leads. See how we evaluate.

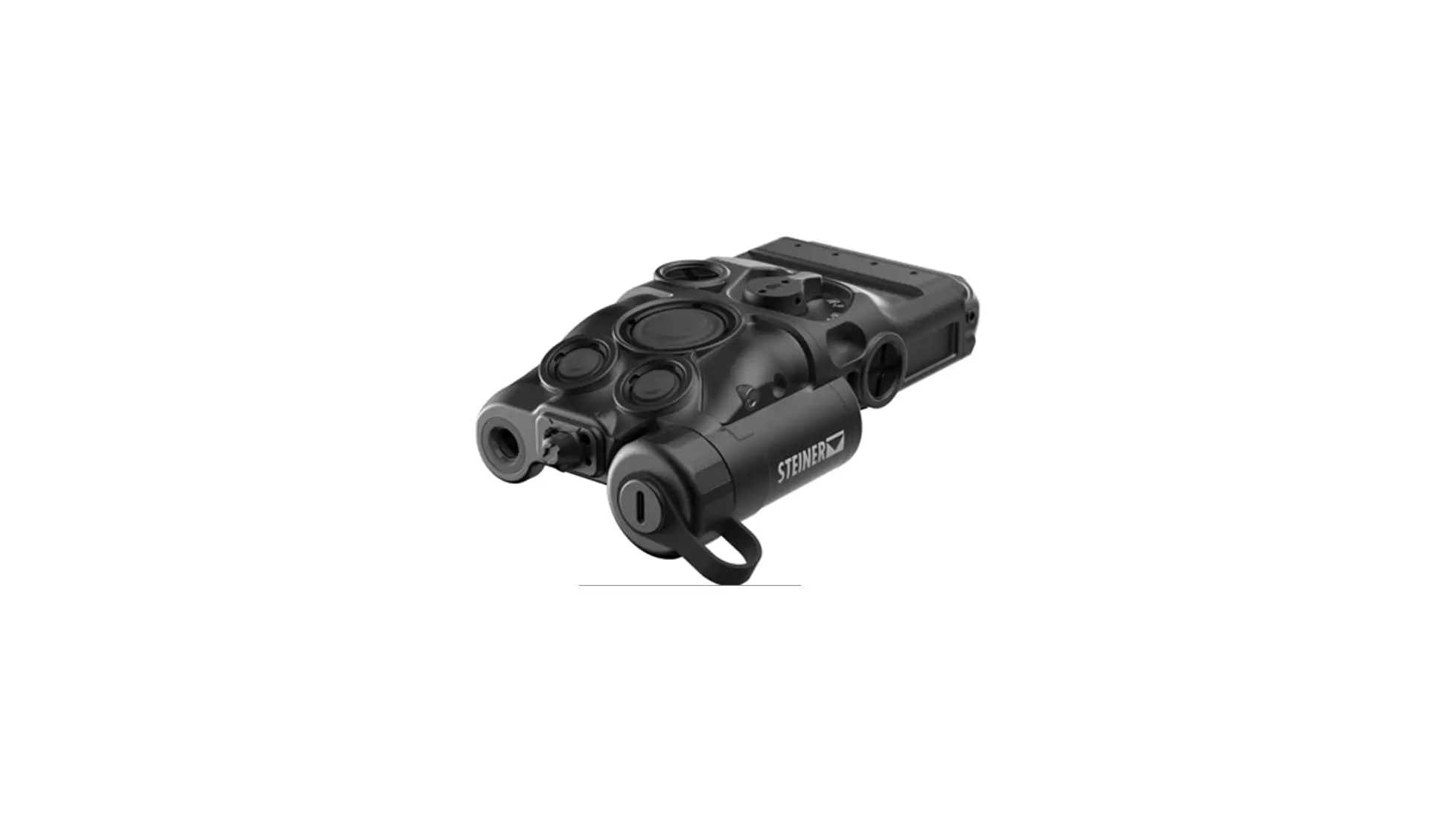

What the ATLAS 9061-BLK is

Steiner describes the ATLAS (Advanced Tactical Laser Aiming System) as a device "engineered for real-time mission adaptability" with five emitters: a visible laser pointer, a NIR laser pointer, a long-range NIR illuminator, a mid-range NIR LED illuminator and a short-range NIR LED illuminator. Steiner calls it "the ideal choice for military, law enforcement, and defense applications".

The 9061-BLK is the version the OpticsPlanet listing sells: black, with a green visible laser. Steiner's spec table lists it as "Green Class 3R", with the visible laser at under 5 mW and 520 nm, the IR pointer at under 0.7 mW, Class I, 835 nm, and the IR illuminator at under 4 mW, Class 3R, 835 nm. Steiner's 2025 sell sheet also lists a Flat Dark Earth 9061-FDE, and the ATLAS family includes other models such as the red-laser 11001-BLK; this review covers only the 9061-BLK.

The retailer's spec table gives one laser output line of 5 mW. Steiner rates each emitter separately, and its 2025 sell sheet puts the NIR LED illuminators at under 200 mW, a line that does not appear on the web spec table.

Three illuminator beams, chosen by a button

Steiner's Feature Set lists a 40° to 50° fixed LED NIR illuminator "for CQB operations", a 10° to 15° LED NIR illuminator for mid-range use, and a 2° to 3° illuminator for long-range precision. Steiner's spelling is "VSCEL"; its sell sheet's emitter list and Guns & Ammo use VCSEL, and the sell sheet describes that beam as having "Minimum Speckle". Steiner's spec table gives the long-range illuminator a 45 mRad divergence, which works out to about 2.6° (our arithmetic), inside the 2° to 3° range.

There is no focus ring in Steiner's description. The sell sheet calls it "1 CLICK ILLUMINATOR ADJUSTMENT": you pick one of the three beams. Guns & Ammo writes that the illuminator button selects short, mid or long range, shown by an LED indicator on the back of the unit in green, orange or red, respectively, and that a separate power button cycles low, medium and high with the same color code. Steiner publishes no illuminator range figure for the ATLAS.

Controls and the five-position switch

Steiner lists a 5-position mode switch and three tactile buttons: fore/on, power selector and illuminator selector, with "True ambidextrous controls, centered for left or right-handed operation" (2025 sell sheet). Guns & Ammo (Rich Nance, June 7, 2026) describes the rotary switch positions from left to right as V (visible laser), Off, IR-P (NIR laser pointer), IR-L (a short-, mid- or long-range NIR illuminator) and IR-B, which combines a NIR illuminator with the NIR laser pointer.

Per the same review, holding the larger center "fire" button turns the unit on in the selected mode and releasing it turns it off; clicking and releasing it twice in quick succession gives constant-on. An auxiliary power-level switch on the back limits the unit to low mode while a blue (turquoise) screw is installed, which Guns & Ammo describes as a training setting; the screw stores on the right side above the battery compartment. Guns & Ammo found the buttons "intuitive to operate". Its review does not name a model number, and its photo caption describes a visible red laser, so treat these findings as describing the ATLAS family rather than the green 9061-BLK specifically.

Zeroing: what the shared adjusters move

Steiner's web page says "Co-aligned lasers and illuminators with a single set of adjusters". Its 2025 sell sheet is more specific: the single set of adjusters co-aligns the "visible laser pointer, near infrared laser pointer and long-range near infrared illuminator". Guns & Ammo says the same three move together with one elevation or windage adjustment, with elevation on top, left of the rotary switch, and windage on the right side, forward of the battery compartment. The two LED illuminators are not on that list. Steiner lists windage and elevation adjustment as "Yes" but publishes no click value or total travel.

Battery, weight and build

Steiner lists battery life as ">3 Hours" on a CR123A; the 2025 sell sheet labels the figure mode dependent, and Guns & Ammo writes that a CR123A powers the unit "for more than 3 hours". The retailer's spec table shows a longer battery figure that we could not find in any Steiner document, so this page uses Steiner's. Plan on carrying spares.

Steiner lists a weight with battery of under 200 g (under 7 oz), dimensions of 4.5 x 2.5 x 1.4 in, and a magnesium alloy housing: "To reduce unit weight, a Magnesium alloy has been used for the housing, instead of Aluminum." The mount is an "Integrated Bolt-Mount for MIL-STD-1913 Rail" with, in the sell sheet's words, "lower height above rail for seamless use with standard optics". Steiner rates it waterproof to "20m for 2 hours" and gives a temperature range of -40° C to +65° C; it publishes no IP code and no shock or vibration rating. Steiner's other ATLAS download, its ATLAS eOptics sell sheet, says "Proudly designed, machined and assembled in the USA."

ATLAS vs DBAL-D2, on Steiner's own numbers

Steiner sells both. On its two product pages, the ATLAS is the lighter unit and carries the deeper water rating and the wider cold-weather range; the DBAL-D2 carries a single LED IR illuminator with a much higher listed output ceiling (under 600 mW, against under 4 mW for the ATLAS VCSEL and under 200 mW for its LEDs) and an adjustable beam, and Steiner's table answers "Yes" for its remote cable pressure pad. Output figures for different emitter types do not tell you which lights up a scene better at night, and no independent test we found compares the two. The ATLAS also costs considerably more on OpticsPlanet.

What the one OpticsPlanet review says

OpticsPlanet shows 5.0/5 from a single review, so there is no owner pattern to report. The reviewer, writing in March 2026, says they would recommend it:

“Been using mine for about a month now and love it. No issues at all and the full system works like a charm.”

Tanner (CO), five-star review, March 11, 2026, via OpticsPlanet

One month of use from one reviewer says little about long-term durability or zero retention. The weight of this review rests on Steiner's specifications and the Guns & Ammo description.

Export and warranty

Steiner's ATLAS page carries this sentence: "This product is subject to U.S. export control laws and regulations. Exports may require a license from the U.S. government". Its spec table shows "No" in the "Restricted" column for the 9061-BLK. We quote both and add no interpretation; check your state and federal rules, and direct questions to Steiner.

Steiner's warranty page lists a Steiner eOptics 2-Year Warranty that "Covers all Thermal Devices, Night Vision Devices, Laser Aiming Solutions, Beacons and Battle Lights", valid in the U.S. and Canada only, for the original purchaser, and only for products bought from Burris Co. or a Burris Co. authorized seller in the United States. Steiner's lifetime Heritage warranty covers binoculars, riflescopes, battle sights, rings and mounts, so it does not apply to the ATLAS. Steiner gives a customer service number on that page for checking whether a seller is authorized.

Trade-offs, plainly

• Battery life is listed by Steiner at ">3 Hours" on one CR123A, mode dependent.
• The remote cable and pressure pad are not included (Steiner's table: "No"; Guns & Ammo: "optional (not included)").
• Steiner's sell sheet names only the visible laser, NIR pointer and long-range illuminator as sharing one set of adjusters; it does not say whether the two LED illuminators follow that zero.
• No white light: you still need a separate weapon light.
• Steiner publishes no illuminator range, no click value and no shock rating.
• The warranty is two years, not Steiner's lifetime Heritage warranty.
• Owner evidence is a single review after about a month of use.
• It is expensive, and costs considerably more than Steiner's DBAL-D2 on OpticsPlanet.

Key specifications

Specifications are Steiner's (ATLAS product page, 9061-BLK row) unless marked as the 2025 sell sheet or the warranty page. No editorial award is claimed.

Should you buy it?

• Buy it if you shoot with night vision and want a green visible laser, an IR pointer and three selectable IR illuminator beams in a unit Steiner lists at under 200 g, rated to 20 m for 2 hours and -40° C, and you are happy to carry spare CR123A batteries.
• Look at the Steiner DBAL-D2 if illuminator output and a pressure pad in the box matter more than weight: our Steiner DBAL-D2 review covers a unit whose LED illuminator Steiner rates at under 600 mW with a 2° to 30° adjustable beam.
• Look at the Wilcox RAID Xe if you want a maker to state plainly that every emitter shares one zero: our Wilcox RAID Xe review covers a unit where one windage and one elevation adjustment zero all of its emitters.
• Look at the Holosun IRIS 4 if you want a white light in the same unit: our Holosun IRIS 3 vs IRIS 4 comparison covers it.

Still choosing the night vision to pair with it? See our best night vision goggles and best night vision monocular guides.
