Steiner DBAL-D2 review: a big green laser with a strong IR LED illuminator
Our verdict: 4.2/5. The Steiner DBAL-D2 is a rifle-mounted laser aiming device for night vision users: a green visible laser, an IR aiming laser and an IR LED illuminator in one aluminum box, with the visible and IR aiming lasers co-aligned, per Steiner. Its selling point is the illuminator. Steiner rates the LED at under 600 mW with a beam that adjusts from 2 to 30 degrees. The catches are just as consistent: 10 of the 25 OpticsPlanet reviews call it big, huge, large, chunky or heavy as a drawback, two say the IR illuminator is visible (one calls it "a visible red light"), one owner writes that the illuminator "can not be adjusted for windage/elevation", and it is expensive. Steiner and the retailer also print different weights, which we cannot settle for you. Want a white light in the same unit? See our Holosun IRIS 3 vs IRIS 4 comparison; our Wilcox RAID Xe review covers a device Wilcox describes as built for military and law enforcement operators.
OpticsPlanet shows 4.9/5 from 25 reviews. The version we card is MPN 9001, Black, green beam, at around $2,000. Check price and availability on OpticsPlanet.
How we reviewed it: a research-based review built from Steiner's own DBAL-D2 product page and its About Us page, the OpticsPlanet listing, and all 25 reviews on that listing. We have not mounted or used a DBAL-D2 ourselves; the score is our editorial opinion and the owner rating is shown attributed to its source. Where Steiner and the retailer disagree, we print both and say whose number is whose. Claims we could not confirm on Steiner's own pages are left out. See how we evaluate.

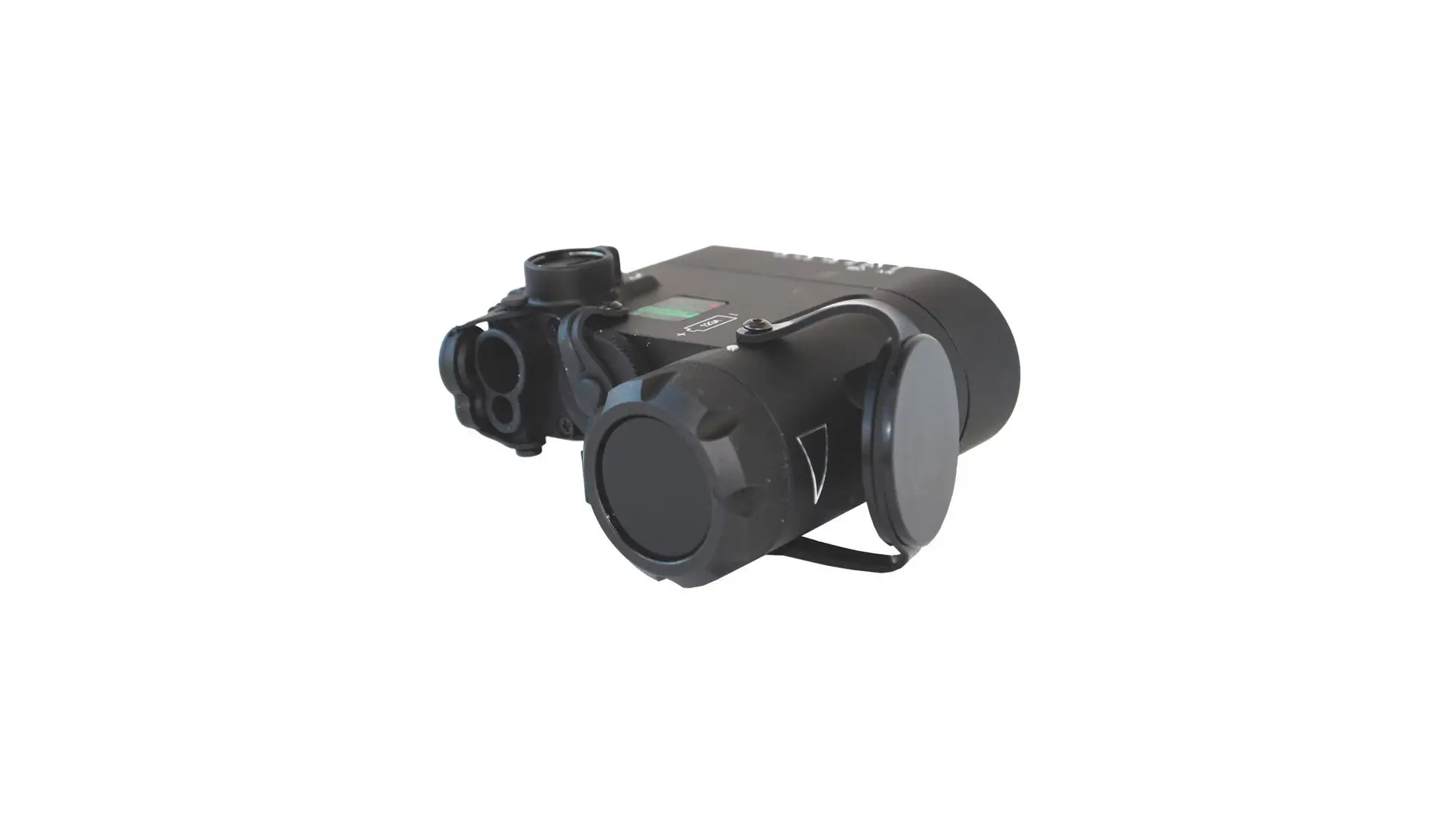

What the DBAL-D2 is
Steiner's product page for Model 9001 (Black) lists three emitters. The visible laser is green, 532 nm, under 5 mW, Class 3R. The IR pointer is 850 nm, under 0.7 mW, Class 1. The IR illuminator is an LED, not a laser: 850 nm, under 600 mW, listed as "LED Eye Safe". Steiner's feature list adds co-aligned visible and IR aiming lasers, fully adjustable windage and elevation, a quick release HT mount, a mode selector switch, an integrated activation switch and a remote cable port. It runs on one CR123A.
Steiner describes the illuminator this way: the DBAL-D2 "features a 2° to 30° adjustable illumination beam", and "This highly collimated beam significantly enhances night vision performance and offers an eye-safe means of illuminating distances greater than 1000 m." That distance is Steiner's claim; we have not measured it.
Steiner's feature list does not include a white light. If you also want a white light on the rifle, see our best rifle light guide.
Steiner or Laser Devices?
The OpticsPlanet listing's title and web address and several older reviews use the Laser Devices name, while the listing's spec table names Steiner as the manufacturer. Steiner's About Us page explains the link: "In 2012, Steiner acquired Laser Devices, Inc., now known as Steiner eOptics, a USA manufacturer of laser aiming devices and tactical flashlights for military and law enforcement personnel" (the sentence continues). The current Steiner product page sells the DBAL-D2 under the Steiner name and does not mention Laser Devices. The model number on Steiner's page, 9001 Black, matches the MPN on the OpticsPlanet listing.
Where Steiner and the retailer disagree
Several figures on the OpticsPlanet spec table do not match Steiner's product page. The biggest is weight: Steiner lists 8.6 oz with battery, the retailer 12.5 oz. We cannot tell you which is right. If weight matters to your build, ask the retailer or Steiner before you order.
| Spec | Steiner product page | OpticsPlanet spec table |
|---|---|---|
| Weight | 8.6 oz (244.5 g), listed as weight with battery | 12.5 oz |
| Dimensions | 4.6 x 3.4 x 1.8 in (axes not labelled) | Length 3.4 in, width 1.6 in, height 3.9 in |
| Wavelength | Green laser 532 nm, IR laser 850 nm, IR illuminator 850 nm (each +/- 3%) | 525 - 840 nm |
| Laser output | Visible under 5 mW, IR pointer under 0.7 mW, IR illuminator under 600 mW | 5 mW |
| Battery life | Mode Dependent | 3 hours |
| Mount | QD HT Mount | Rail |
| Visible laser class | Class 3R | Class IIIa (feature list) |
One 2015 reviewer also writes "Unit is a bit heavy at 12.5 oz so some may want to consider carefully how to mount before purchase." (ghost warrior, OK, via OpticsPlanet). Where we print a spec elsewhere on this page, Steiner's wording leads and the retailer's figure is labelled as the retailer's.
What 25 OpticsPlanet reviews say
OpticsPlanet shows 4.9/5 from 25 reviews: 22 five-star and 3 four-star, none lower. The pool spans many years. The oldest dated review is from June 7, 2013 and the newest from January 3, 2026; 14 of them were written between 2013 and 2020, 10 between 2023 and 2026, and the Most Helpful Positive review shows no date. Older reviews may describe units made years ago. 16 of the 24 listed reviews carry the Verified Owner tag.
The illuminator and the lasers
The illuminator is the part owners talk about most warmly. Two reviewers compare it with an "A3", both in the D2's favor:
“This module has a great illuminator that is significantly more powerful than the A3.”
Phil (OH), verified owner, five-star review, April 20, 2024, via OpticsPlanet
Minuteman (CA, verified owner, four stars, 2023) writes that the D2 "is far superior in terms of capability compared to the DBAL A3". On the visible laser, a 2023 owner says "The laser is bright enough to utilize during daytime training but truly shines when the sun goes down" (Peter Hutchison, FL, verified owner), and a 2016 owner says "The green beam is very visible in daylight" (William, MD, verified owner). One 2015 reviewer adds a caution about power indoors:
“I would say this device is for out door use only, it's too powerful for indoor use, except for the visible laser on low only.”
jman (WA), five-star review, September 20, 2015, via OpticsPlanet
Three reviewers mention using a diffuser: Maetriques ("Diffuser helps with the lamp"), NJNS ("I added a LEAF sight and VWS diffuser") and Minuteman ("With the addition of a Villain Weapons Light diffuser it performs very well in CQB scenarios").
Mount and zero
Three reviewers say in so many words that it holds zero: Phil ("Unit locks up tight and holds zero."), a 2016 owner who says it "maintains zero after taking a beating" (ParticularGuyArizona, AZ, verified owner), and a 2017 reviewer:
“One of its greatest attributes is its ability to be removed and remounted and hold zero within usable limits.”
Eyerelief (CO), five-star review, October 2, 2017, via OpticsPlanet
On the controls, one 2024 reviewer pushes back on what others say: "Some people say that the dial settings are hard to figure out, I disagree. Just read the manual." (Nick, SC).
The complaints: size, a visible glow, a fixed illuminator
Size is the most repeated drawback. By our count, 10 of the 25 reviews call it big, huge, large, chunky or heavy as a downside; one more (Peter Hutchison) notes it is bigger than other products but likes the size, and one 2016 reviewer (Crash55) lists size and weight among its pros. Two examples:
“I have a 16in barrel and it still takes up a lot of rail.”
Bluekup (CA), verified owner, five-star review, January 11, 2025, via OpticsPlanet
A 2016 owner puts it as "the down side is the size of the iluminator is the biggest I ever seen" (Flip, NC, verified owner).
Two reviews say the IR illuminator can be seen. The Most Helpful Positive review, which otherwise praises the unit, calls it a visible red light; a 2016 four-star review says only that it is visible:
“The LED IR illuminator gives off a visible red light that, while very narrow, can give away your position to a potential enemy.”
Most Helpful Positive review on OpticsPlanet (five stars; author and date not shown)
“Only downside and the reason it is not a 5, is that the IR illuminator is visible which can give away your position.”
Hoot (KY), four-star review, December 25, 2016, via OpticsPlanet
These are two owners' observations, not a Steiner specification. One owner also writes that the illuminator has no windage/elevation adjustment:
“the IR Illuminator can not be adjusted for windage/elevation which in my case puts my aiming laser down and to the right of center on the IR beam.”
Minuteman (CA), verified owner, four-star review, September 14, 2023, via OpticsPlanet
A 2014 reviewer lists one hardware con about the pressure switch: "In-line jacks tend to fatigue and break more than 90 degree angled jacks." (Legacy Reviewer, VA, verified owner). On price, four reviews list price or expense as a con, while at least six others count the price or value as a plus.
Video: the Steiner DBAL
This is a Steiner video about the DBAL aiming laser. It shows both a tan and a black unit, and no D2 model label or beam color was legible in the frames that were checked, so treat it as background on the DBAL family, not as footage of the black green-laser 9001 we card.
Export, and what we do not say
Steiner's product page carries this sentence: "This product is subject to U.S. export control laws and regulations. Exports may require a license from the U.S. government". We quote it and add no interpretation; direct questions about it to Steiner.
Warranty and build
Steiner lists a 2 year warranty, an aircraft aluminum housing, submersible to 5 m, and a temperature figure of +4° C to +65° C. The retailer gives the country of origin as USA, and Steiner's About Us page says its eOptics products are manufactured in its facility in Monterey, California. These are manufacturer and retailer figures; we have not checked them.
Trade-offs, plainly
- It is big: 10 of the 25 OpticsPlanet reviews name size or weight as a drawback, and one says it takes up a lot of rail on a 16 inch barrel.
- Steiner (8.6 oz with battery) and the retailer (12.5 oz) disagree on weight, and we cannot resolve it.
- Two reviews say the IR LED illuminator is visible and can give away your position; one of them calls it a visible red light.
- One owner writes that the illuminator "can not be adjusted for windage/elevation", which in their case put the aiming laser down and to the right of center on the IR beam.
- Battery life is "Mode Dependent" per Steiner; the retailer lists 3 hours.
- The price is high, and four reviews list it as a con.
- Much of the owner record is old: 14 of the 25 reviews are from 2013 to 2020.
Key specifications
| Product | Steiner DBAL-D2, Model 9001, Black, green visible laser |
|---|---|
| Version carded | MPN 9001, Black, Beam Color Green, Finish Matte (the one orderable new row on the listing) |
| Visible laser | Green, 532 nm +/- 3%, under 5 mW, Class 3R |
| IR pointer | 850 nm +/- 3%, under 0.7 mW, Class 1 |
| IR illuminator | LED, 850 nm +/- 3%, listed as "< 600 mW LED Eye Safe"; 2° to 30° adjustable beam |
| Zero | Co-aligned visible and IR aiming lasers; fully adjustable windage / elevation |
| Controls | Activation / mode selector switch, integrated push button, remote cable port; activation by integrated push button and remote cable. Steiner's spec table answers "Yes" under Remote Cable Pressure Pad; the retailer's package contents line names only the unit, so confirm what ships |
| Battery | One CR123A; life "Mode Dependent" (Steiner), 3 hours (retailer) |
| Weight | 8.6 oz / 244.5 g with battery (Steiner); 12.5 oz (retailer) |
| Water | Submersible to 5 m |
| Temperature | +4° C to +65° C (Steiner); the retailer lists an operating temperature of 4 - 65 Celsius |
| Material | Aircraft aluminum |
| Mount | QD HT Mount (Steiner); the retailer says it fits rifles, carbines, or submachine guns equipped with NATO 1913 or Picatinny rails |
| Warranty | 2 years (Steiner) |
| Country of origin | USA (retailer); Steiner says its eOptics products are made in Monterey, California |
Specifications are Steiner's (DBAL-D2 product page, Model 9001 Black) unless marked as the retailer's. No editorial award is claimed.
Should you buy it?
- Buy it if you shoot with night vision, want a green visible laser, an IR laser and an IR LED illuminator with a 2° to 30° adjustable beam (per Steiner) in one unit, and have the rail space for a large box.
- Think twice if rail space, weight or a covert IR signature matter most to you, or if you want a white light in the same unit. Our Holosun IRIS 3 vs IRIS 4 comparison covers a different laser device family, and the IRIS 4 adds a white light.
- Look at the Wilcox RAID Xe only if budget is less of a concern: our Wilcox RAID Xe review covers a pricier device that Wilcox describes as built for "MIL-LE Operators".
Still choosing the night vision to pair with it? See our best night vision goggles and best night vision monocular guides.
FAQ
What is the Steiner DBAL-D2?
A rifle-mounted laser aiming device with three emitters. Steiner's product page for Model 9001 (Black) lists a green visible laser (532 nm, under 5 mW, Class 3R), an IR pointer (850 nm, under 0.7 mW, Class 1) and an IR LED illuminator (850 nm, listed as "< 600 mW LED Eye Safe"). The visible and IR aiming lasers are co-aligned, and Steiner says the illuminator beam adjusts from 2 to 30 degrees. Steiner's feature list names no white light.
How much does the DBAL-D2 weigh?
The two sources disagree. Steiner's product page lists a weight with battery of 8.6 oz (244.5 g). The OpticsPlanet spec table lists 12.5 oz. We have not weighed one, so we cannot tell you which is right. Owners on OpticsPlanet often call it big or heavy.
What battery does the DBAL-D2 use and how long does it last?
One CR123A. Steiner's product page gives battery life as "Mode Dependent". The OpticsPlanet spec table lists 3 hours.
Can people see the DBAL-D2 IR illuminator?
Two of the 25 OpticsPlanet reviews say so. The Most Helpful Positive review says "The LED IR illuminator gives off a visible red light that, while very narrow, can give away your position to a potential enemy." A 2016 four-star review says the visible illuminator was the reason it did not give five stars. These are owner observations, not a Steiner specification.
Is the Laser Devices DBAL-D2 the same as the Steiner DBAL-D2?
The OpticsPlanet listing and several older reviews use the Laser Devices name. Steiner's About Us page says that in 2012 Steiner acquired Laser Devices, Inc., now known as Steiner eOptics. The current Steiner product page sells the DBAL-D2 under the Steiner name and does not mention Laser Devices.
What does Steiner say about exporting the DBAL-D2?
Steiner's product page says: "This product is subject to U.S. export control laws and regulations. Exports may require a license from the U.S. government". We quote it and add no interpretation; direct questions about it to Steiner.
