Bushnell Fusion X review: a 10x42 binocular with a laser rangefinder and bow and rifle modes

By the OpticVerdict Editorial Team.
Research-based review · Updated 2026-10-08

How we reviewed it: a research-based review built from the retailer's listing (one configuration, the 10x42), all 3 reviews on it, Bushnell's product page, warranty page and owner's guide (revision 09-25), and independent write-ups we read: American Hunter (Ron Spomer, 2021), Women's Outdoor News (Sharenda Birts, 2022) and Field & Stream (Emily Kantner, 2026). Where the retailer's specification table disagrees with Bushnell, we print Bushnell's figure and say so; where Bushnell's own documents disagree, we print both. Research leads we could not confirm on a primary source were left out. We have not field-tested this binocular; the score is our editorial opinion and owner ratings are shown attributed to their source. See how we evaluate.

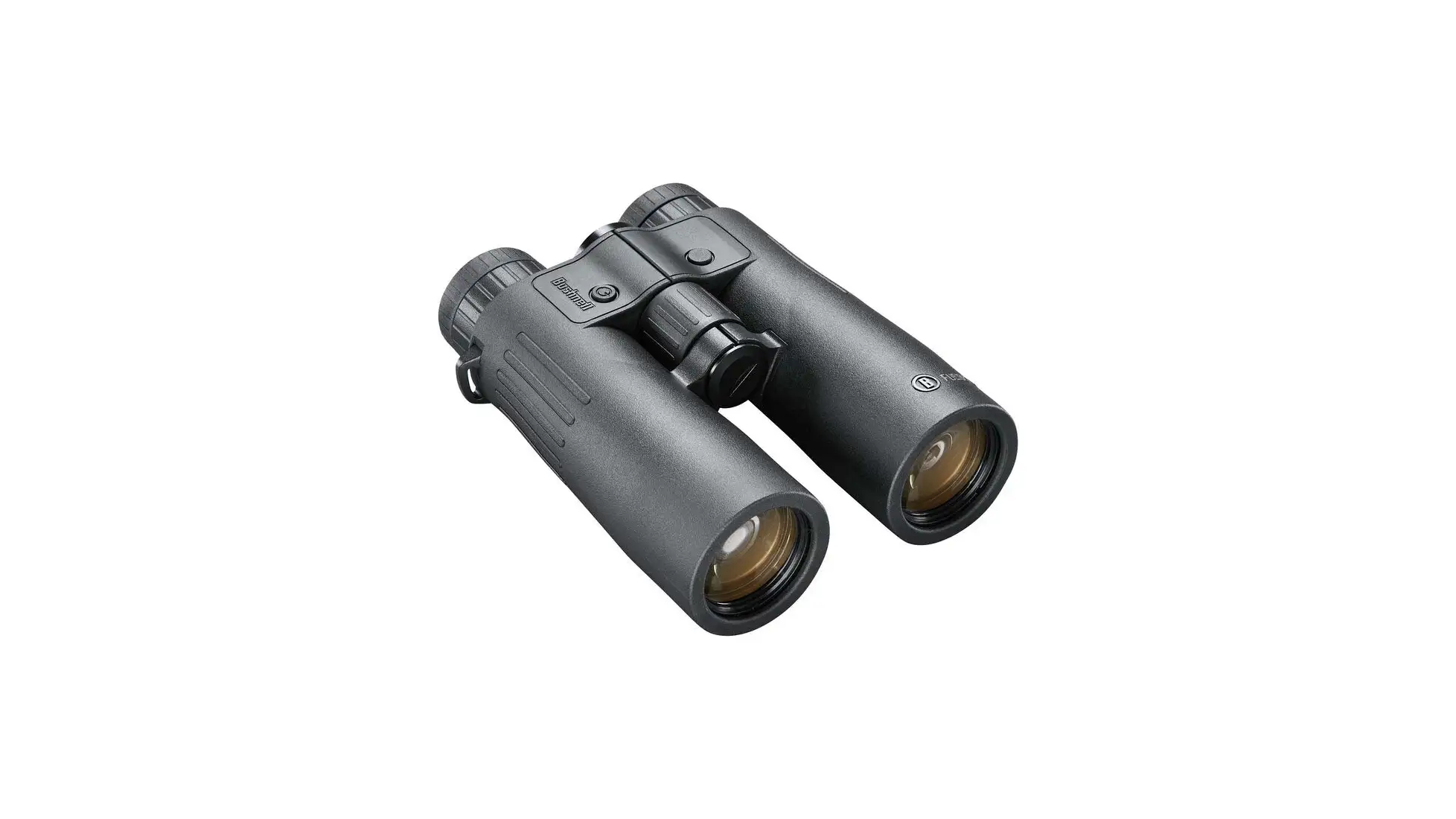

What the Fusion X is

The Fusion X is one product in one size: Bushnell's owner's guide covers only model FX1042AD, a 10x42, and the retailer has a single black listing for it. Bushnell describes it as a binocular and a laser rangefinder “in one rugged package”. It is not the older Bushnell Fusion 1 Mile ARC or Fusion 1600 ARC, which are separate products with their own listings; none of their figures appear on this page.

Bushnell's owner's guide says the last distance stays on the display for about 15 seconds and classes the laser as a Class 1 laser product; the guide gives no wavelength or beam divergence.

Ranging: how far, how accurate, and three target modes

Range. Bushnell gives three figures in three places: 5 to 1,800 yards in the owner's guide, 1,760 yards in the product page text (“accurate to within one yard out to 1,760 yards”) and 1,750 yards in the same page's spec table. All three are about a mile. The owner's guide gives no separate figure for deer, trees or reflective targets, so we do not print one. The guide's accuracy claim is plus or minus 1 yard to the maximum range. Its minimum is 5 yards in Standard mode, though the guide's basic operation steps say to start on a target at least 10 yards away.

Target modes. There are three, each with Automatic SCAN, and Standard is the default. Holding the Fire button and sweeping across targets gives continuous readings. BullsEye shows only the closest object, so you do not get the distance to the background by accident; Brush shows only the farthest object, so brush and tree branches in front of the target are ignored. A power meter shows bars for the laser energy that comes back, and the owner's guide says the more reflective the target, the more bars light up. Bushnell credits an FPGA for what it calls instantaneous and accurate readings; that is Bushnell's claim.

Bow, Rifle and Height modes

Bow mode shows the angle of incline and the resulting true horizontal distance. Bushnell's own example: a 32 yard line of sight at minus 52 degrees becomes a 23 yard shot. The owner's guide says Bushnell decided multiple bow ballistic groups were not necessary after talking to bowhunters, so there is one. For how to use an angle-compensated reading on a bow, see our guide to using a rangefinder for bow hunting.

Rifle mode shows the bullet drop at the target in inches, centimeters, Mils or MOA, from 100 to 800 yards and up to plus or minus 70 degrees of incline. You choose one of eight ballistic groups for centerfire rifles (A to H) or two for muzzleloaders (I and J, which Bushnell says it built with PowerBelt Bullets), and a sight-in distance of 100, 150, 200 or 300 yards. Bushnell says nearly 2,000 caliber and load combinations are matched to a group on its website, and the guide explains how to pick a group for a load that is not listed, from a 100 yard zero and the drop you measure at 300 yards. There is also a Regular mode that gives line-of-sight distance only. Bushnell's owner's guide describes no app connection, so everything is set on the binocular.

Height Mode measures from the base to the top of an object and shows the height below the range reading. One owner on the retailer mentions it (below).

The display and the optics

ActivSync display. Bushnell's product page says it “shifts the readout from black to red for visibility in any light”, and the owner's guide says ActivSync is always on and adjusts the display contrast to the background automatically. You can set four brightness levels (25, 50, 75 and 100 %, with 25 % as the default) and pick a Circle, Dot or Circle with Dot reticle. Sharenda Birts of Women's Outdoor News, who used a unit borrowed from a friend, wrote: “The digital display gradient was phenomenally impressive.”

Glass. Bushnell's owner's guide says the lenses are fully multi-coated, with an EXO Barrier coating on the exterior lens surfaces that repels water, oil, fog, dust and debris, and its product page says the HDOS optical system “delivers true-to-life color and sharpness”. The guide lists a 305 ft field of view at 1,000 yards, 16 mm of eye relief, a 4 mm exit pupil (4.2 mm by our arithmetic, 42 divided by 10) and a 15 ft (4.6 m) close focus. The retailer's table lists 21 ft for the close focus; Bushnell's guide says 15 ft. We do not print a prism glass type or a phase or dielectric coating: Bushnell's current product page and a 2021 magazine spec block disagree on all three, and the owner's guide does not say.

What the independent testers found

American Hunter (Ron Spomer, November 2, 2021) ran the Fusion X beside a first-generation Swarovski EL Range. After sunset, Spomer reports, the two read the same within 1 yard out to 1,951 yards, and the Fusion X read as close as 9 yards. In bright sun it took four tries to range a small tree at about 1,360 yards, where the Swarovski took two. On the glass, Spomer writes: “Fusion X views show a strong yellow cast.” Spomer also reports lash in the focus, so you turn back to find the sharpest point, and in evening light the Fusion X lost detail a minute to a few minutes before the Swarovski, Tract, Leupold and Meopta binoculars he compared it with. Spomer found the buttons fall under the index fingers, liked the grip of the lightly textured armor, and wrote of Bow mode: “I find it perfect for rifle work.” These are one tester's results with one unit; the article does not say how the unit was obtained.

Women's Outdoor News (Sharenda Birts, April 2022) used a Fusion X borrowed from a friend. Its first outing was a cold mentored hunt in “a crisp 9 degrees, and brisk wind”, and the review notes that it will not adapt to a tripod.

Field & Stream (Emily Kantner, 2026) names the Fusion X “Best Budget” in its rangefinder binocular guide, an editors' pick rather than an award. The magazine says the only pair it got its hands on for testing was a different binocular, so its Fusion X entry is not a field test. Its listed cons are “Clarity isn't as good as higher-end options” and “Lower maximum range”.

What the reviewers say: three retailer reviews

The retailer's listing has 3 reviews, rated 4.3 on average (4, 5 and 4 stars), and we read all three. Two carry the Verified Owner tag. All three say they would recommend it. The newest is from September 2025 and the other two from 2024, so none is less than a year old. Three people are not a pattern; on this binocular the weight of the evidence is Bushnell's documents and the independent tests above.

“They were a bit heavier than I anticipated”

Old guy (OR), Verified Owner, via OpticsPlanet

The same owner, who wears glasses and says they have never used rangefinding binoculars before, guesses they see 95% of the full picture with the eyecups turned all the way down. They write that the ranging works, but that they have trouble getting to the right part of the setup and menu, and they mention their age (over 80) in the same breath. On Height Mode they write: “The height feature is great ( once I can find it) and interesting.” They also note that no printed manual came in the box and it has to be downloaded.

“they have a very fast laser in them so if you are not real steady it still reads”

David (IA), reviewer, via OpticsPlanet

That reviewer, who says they have owned many rangefinders over 25 years, gives it five stars. The third review is the one negative experience: EKW, a Verified Owner, writes “there was something wrong with the focus on the pair i received”, noticed it too late to return it to the retailer, and sent it to Bushnell under warranty; they write that Bushnell sent them a label, and of the pair they got back: “The pair I got back is excellent for the price.” One defective unit in three reviews is one report, not a failure rate.

Trade-offs, plainly

• 35 oz (992 g) per Bushnell, and one of the three reviewers, a Verified Owner, found it heavier than expected. Vortex lists its Ranger HD 3000 at 32.4 oz.
• No tripod socket: Bushnell's spec table says Adapts To Tripod: No.
• Water protection is unclear: IPX7 on the product page, IPX4 and “should not be submerged” in the current owner's guide. Do not count on submersion.
• American Hunter's tester saw a strong yellow cast, lash in the focus and earlier loss of detail at dusk than the four other binoculars he compared, and needed four tries on a small tree in bright sun.
• Rifle mode works from groups, not your exact load: eight centerfire and two muzzleloader groups, 100 to 800 yards.
• The menu takes learning: one owner over 80 had trouble finding settings, and no printed manual came in their box.
• Region locked for sale and use in the U.S. only, and the owner's guide says the warranty is valid in the United States and Canada only.

Key specifications: Fusion X 10x42 (FX1042AD)

Figures are Bushnell's (product page or owner's guide, revision 09-25, as marked). Where the guide and the product page disagree we print both. The retailer's table lists a 21 ft close focus and an archery-only rangefinder application; Bushnell's guide says 15 ft and describes Bow, Rifle and Regular modes. The guide's metric field of view figure does not match its own imperial figure, so we print only 305 ft at 1,000 yards.

Warranty, region and what is in the box

Bushnell's warranty page lists a lifetime warranty for binoculars and laser rangefinders: “If your product has an issue due to materials or workmanship, we'll repair it or replace it”, and it asks you not to send a product in unless customer service asks for it. The owner's guide says the warranty is valid in the United States and Canada only and excludes theft, loss, deliberate damage and cosmetic damage. The product page says: “This device is region locked. For sale and use in U.S. ONLY.” Our Bushnell binoculars guide compares this warranty wording with Vortex's.

Bushnell lists the CR2 battery as included and its guide recommends replacing it at least once every 12 months; the guide gives no battery life figure. The guide also refers to an included washable microfiber cleaning cloth.

Should you buy it, and what else to consider

• Buy the Fusion X if you hunt with a rifle or a bow and want to glass, range and read an angle-corrected distance or a holdover in one device, and you can live with 35 oz around your neck.
• Skip it if you need a tripod socket, want a binocular you can submerge, or care most about neutral color and edge-of-dusk performance.
• What else to consider: our Vortex Ranger HD 3000 review covers Vortex's 10x42 rangefinding binocular, lighter at 32.4 oz per Vortex but with no ballistic solver, app or Bluetooth listed; our best rangefinding binoculars guide picks the Revic BR10 for a full onboard ballistic solver, plus the GPO RangeGuide 10x40 and the Leupold BX-4 Range HD Gen 2; and our Leica Geovid R review covers Leica's rangefinding binocular in 10x42 and 15x56.
• Only need the distance? A handheld unit is lighter; see our best hunting rangefinders and, for archery, best rangefinder for bow hunting.
