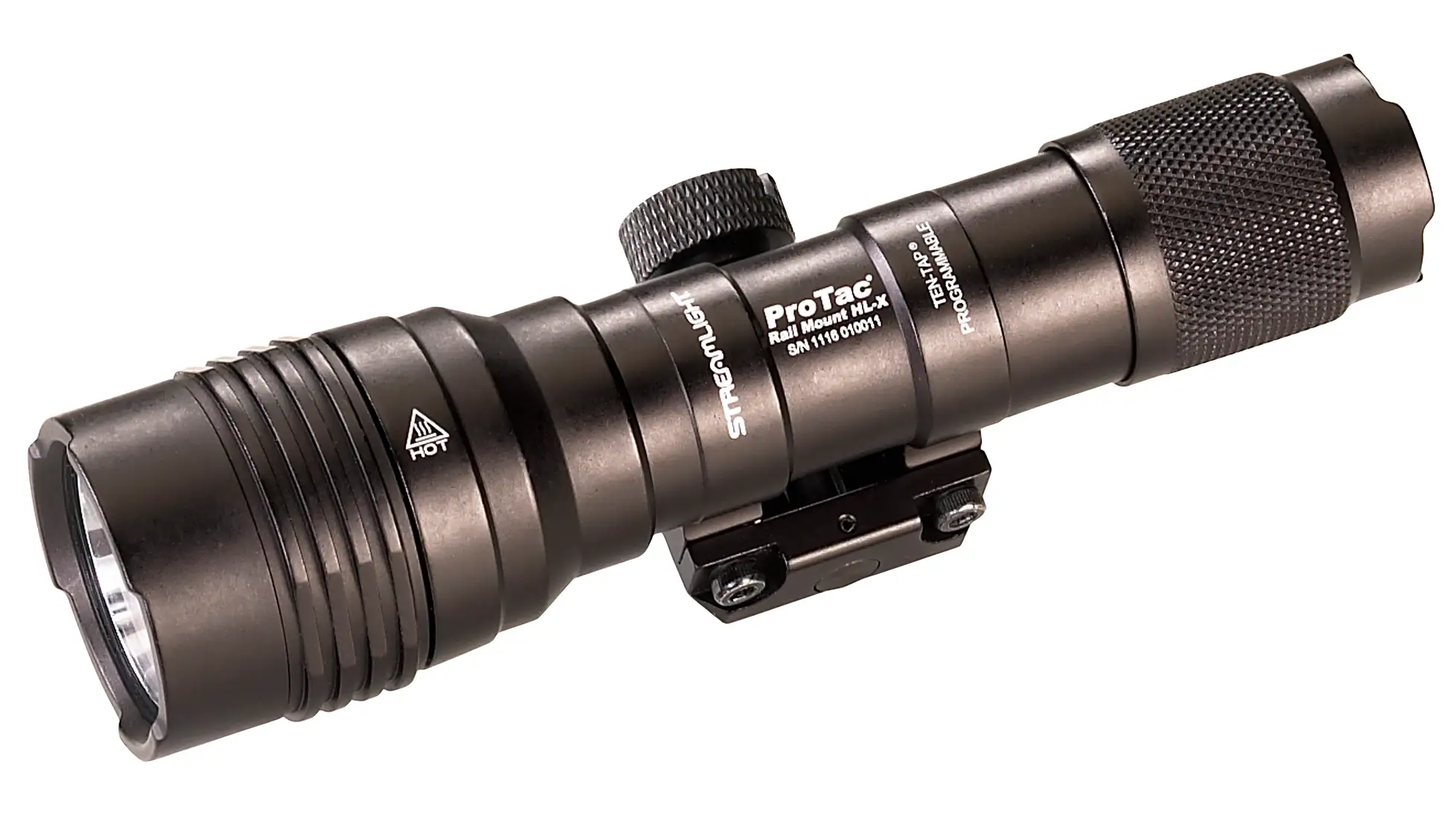

Streamlight ProTac Rail Mount HL-X review: the HL-X Pro's output, one switch at a time
Our verdict: 4.5/5. Buy the Streamlight ProTac Rail Mount HL-X if you want a bright multi-fuel light for an AR-15 or carbine with both switch options in the box. Streamlight rates it at 1,000 lumens and 50,000 candela for a 447 m beam, and both current kits include a push-button tail cap, a remote pressure switch and an M-LOK mount, but you fit one switch or the other. If you want both working at once, get the HL-X Pro, which Streamlight rates at the same output. The trade-off is reliability: 10 of the 235 OpticsPlanet reviews describe flicker or cut-outs, six of them while shooting.
Skip both lights if:
- your barrel is short and every inch counts: both are 5.43 inches long, and 17 reviews of the HL-X call the light itself big, long, bulky or heavy;
- you need a USB-C pack guaranteed: Streamlight's documents do not tie a charging port to a given box.
Rated 4.6/5 from 235 reviews on OpticsPlanet (the retailer's figure, not ours). The USB kit, model 88071, sells for around $160; confirm the current price and availability on the retailer page.
What you get in the box: 88071 or 88066
OpticsPlanet sells the HL-X on one listing in two kits. Model 88071, the kit on our card, comes with Streamlight's SL-B26 rechargeable pack and a USB cord; the retailer's row names it an “18650 USB Battery” and lists the battery type as SL-B26. Model 88066 is the same light with two CR123A lithium cells instead. For both kits, Streamlight's info sheet lists the remote switch, the tail switch, remote retaining clips, an M-LOK mount and mounting hardware, and its product page adds double-sided tape and zip ties.
The M-LOK mount explains some older reviews. Streamlight's 2017 sheet listed the kit without one, and the retailer's package list still does not name it, but Streamlight's current info sheet includes it for both kits, and reviewers from late 2023 on report finding it in the box:
“this light comes with a pic rail to m-look adapter, so you don't need to buy one separately, like I did.”
Nbres (IL), a Verified Owner, via OpticsPlanet, January 2025
Charging needs one note. Streamlight's box list for the 88071 names the pack and a USB cord, not a wall adapter, and one reviewer expected more:
“thought it came with a charger for the battery, only came with a pamphlet and cable for the charger.”
Brad (AK) via OpticsPlanet, December 2021, a three-star review
Streamlight's HL-X instructions say the pack charges outside the light, in about 6 hours with Streamlight AC adapters; its current SL-B26 documents say 5 hours. We do not name the charging port for the pack in either box: Streamlight's current SL-B26 page says USB-C, an earlier Streamlight data sheet for the same pack says Micro-USB, and no Streamlight document fixes the port in a particular box. Streamlight also says the light is not designed for rechargeable CR123 cells.
The plain HL-X: tail cap or remote, one at a time: Streamlight ProTac Rail Mount HL-X
1,000 lm · 50,000 cd · 447 m · SL-B26 USB pack or 2x CR123A · 5.43 in · 6.9 oz with SL-B26 · tail cap and remote switch in the box
around $160exact price on OpticsPlanet
Streamlight gives the HL-X the same output as the HL-X Pro: 1,000 lumens and 50,000 candela for a 447 m beam, on its SL-B26 rechargeable pack or two CR123A cells. The USB kit on this card (model 88071) includes the SL-B26 pack and a USB cord, a push-button tail cap switch, a remote pressure switch and an M-LOK mount, and the light's own clamp fits a Picatinny rail. The difference from the Pro is the switching: Streamlight says the HL-X uses either the remote or the tail cap, so you run one at a time. The HL-X remote has its own small latching switch as well as the momentary pad. What you give up: 10 of the 235 OpticsPlanet reviews describe flicker or cut-outs, six of them while shooting, and the pressure pad mounting is the most repeated complaint.
Pros
- Same Streamlight output as the HL-X Pro: 1,000 lumens, 50,000 candela, 447 m
- Tail cap switch, remote pressure switch and M-LOK mount in both current kits (Streamlight)
- The remote has a momentary pad and a small latching switch for constant-on (Streamlight)
- Multi-fuel: 1.75 hours on high with the SL-B26 pack, 1.25 hours on two CR123A cells
Cons
- One switch at a time: Streamlight says it uses either the remote or the tail cap
- IP54 with the remote installed, against IP67 with the push-button tail cap
- 10 of 235 reviews describe flicker or cut-outs, six of them tied to shooting
- 21 reviews describe trouble mounting the pressure pad or its rail clip
Best for: an AR-15 or carbine where you will settle on either the tail cap or the remote and want Streamlight's 1,000 lumen, 50,000 candela output on a rechargeable pack or CR123A cells.
Key specifications
| Manufacturer | Streamlight |
|---|---|
| Output (high) | 1,000 lumens, 50,000 candela, 447 m |
| Output (low) | 60 lumens, 3,100 candela, 111 m |
| Runtime (high) | 1.75 hr (SL-B26) · 1.25 hr (2x CR123A) |
| Battery | SL-B26 USB rechargeable pack and USB cord (included on 88071) or 2x CR123A |
| Length | 5.43 in |
| Weight | 6.9 oz with SL-B26 · 6.4 oz with CR123A |
| Switch | Push-button tail cap or remote pressure switch, one at a time |
| Mount | Integrated clamp for Picatinny (MIL-STD-1913) rails; M-LOK mount included |
| Model on this card | 88071, Black (SL-B26 USB kit) |
“Easy to mount bright and lightweight. I use this on my AR and it lights up the world.”
Bill, owner (TX) via OpticsPlanet
Key specifications
| Output, high | 1,000 lumens, 50,000 candela, 447 m beam (Streamlight) |
|---|---|
| Output, low | 60 lumens, 3,100 candela, 111 m beam (Streamlight) |
| Runtime, SL-B26 pack | 1.75 hr high, 24 hr low, 3.5 hr strobe (Streamlight) |
| Runtime, 2x CR123A | 1.25 hr high, 21 hr low, 2.5 hr strobe (Streamlight) |
| Battery | One SL-B26 rechargeable pack (model 88071) or two CR123A lithium cells (model 88066); Streamlight says it is not designed for rechargeable CR123 cells |
| Charging | The SL-B26 charges outside the light: about 6 hours with Streamlight AC adapters per the HL-X instructions, 5 hours per Streamlight's current SL-B26 documents |
| Length | 5.43 in (Streamlight); 1.45 in wide and 1.72 in high (Streamlight fact sheet #297) |
| Weight | 6.9 oz with the SL-B26 pack, 6.4 oz with CR123A cells (Streamlight) |
| Switches | Push-button tail cap switch or remote pressure switch, one at a time; the remote has a large momentary pad and a small latching switch (Streamlight) |
| Programs | TEN-TAP: high/strobe (factory default), high only, low/high (Streamlight) |
| Mount | Integrated clamp for MIL-STD-1913 (Picatinny) rails; M-LOK mount included (Streamlight) |
| Water and impact | IP67 with the push-button switch (1 m for 30 minutes); IP54 with the remote pressure switch installed; 2 m impact tested (Streamlight) |
| Body and lens | Anodized aluminum, impact-resistant tempered glass lens (Streamlight) |
| Color | Black (Streamlight) |
| Made in | China (Streamlight fact sheet #297) |
| Warranty | Limited lifetime; Streamlight's warranty page gives switches and electronics 2 years with proof of purchase |
| Model priced here | 88071, Black, SL-B26 USB kit (OpticsPlanet code SQ-FLW-PTRMHLX-88071) |
Streamlight figures are from its HL-X product page, info sheet, fact sheet #297, instructions and warranty page as read on 14 October 2026. Where the retailer's listing disagrees (beam distance, water rating), we print Streamlight's figure. Streamlight's instructions also warn that the light gets uncomfortably warm when operated for a long time.
HL-X vs HL-X Pro: the switch is the difference
Streamlight gives the two lights the same output, runtimes, length, water ratings and M-LOK mount. The difference is at the tail. Streamlight says the HL-X “uses either a remote pressure switch or a standard push-button tail cap switch”, so you run one or the other. For the Pro, Streamlight says its “Jack-Cap tail cap switch offers operational switch redundancy with both push-button operation or remote pressure switch operation”: the button stays on the tail and the remote plugs into it.
The remotes differ too. The HL-X remote has a large momentary pad and a small latching switch, and Streamlight's instructions say the momentary pad is disabled while the latching switch is locked on. The Pro system kit's remote is momentary, and constant-on comes from the Jack-Cap's push button. Streamlight's figures:
| Streamlight figure | ProTac Rail Mount HL-X | ProTac Rail Mount HL-X Pro |
|---|---|---|
| Output, high | 1,000 lm, 50,000 cd, 447 m | 1,000 lm, 50,000 cd, 447 m |
| Output, low | 60 lm, 3,100 cd, 111 m | 60 lm, 3,100 cd, 111 m |
| Runtime, high | 1.75 hr (SL-B26), 1.25 hr (CR123A) | 1.75 hr (SL-B26), 1.25 hr (CR123A) |
| Length | 5.43 in | 5.43 in |
| Weight | 6.4 oz (CR123A), 6.9 oz (SL-B26) | 6.6 oz (CR123A), 7.2 oz (SL-B26) |
| Switching | Remote pressure switch or push-button tail cap, one at a time | Jack-Cap tail cap: push-button and remote together |
| Remote | Momentary pad plus a small latching switch | Momentary remote in the System kit; constant-on from the tail button |
| Water | IP67 with push-button, IP54 with remote | IP67 with push-button, IP54 with remote |
| M-LOK mount | Included | Included (Light Only and System kits) |
| Versions | 88066 (2x CR123A), 88071 (SL-B26 and USB cord) | “Light Only” or “System” |
| Colors | Black | Black, Tan |
On Streamlight's numbers the Pro is 0.2 to 0.3 oz heavier and otherwise matches the HL-X on output. Choose the HL-X if you will settle on one switch, tail cap or remote, and like having a latching button on the remote itself. Choose the Pro if you want a tail button you can always reach while the remote is fitted. The Pro is the overall pick in our best rifle light guide:
Best rifle light overall: Streamlight ProTac Rail Mount HL-X Pro
1,000 lm · 50,000 cd · 447 m · SL-B26 USB pack or 2x CR123A · 5.43 in · 7.2 oz · tail cap and remote switch in the box
around $160exact price on OpticsPlanet
This is the rifle light to buy for most AR-15s and carbines, because it comes as a complete kit. The USB version on this card (model 88127) ships with the rechargeable SL-B26 pack and a USB cord, a Jack-Cap tail cap that works as a push-button switch, a momentary remote pressure switch that plugs into the same cap, and an M-LOK mount; the light's own clamp fits a Picatinny rail directly. Streamlight rates it at 1,000 lumens and 50,000 candela for a 447 m beam, and it also runs on two CR123A cells. TEN-TAP programming picks one of three modes: high and strobe, high only, or low and high. The retailer's spec table lists a 330 m beam; Streamlight's own info sheet says 447 m, and that is the figure we print. What you give up: it is a big light for a short barrel, and the remote switch is momentary only.
Pros
- Complete kit: SL-B26 pack, USB cord, tail cap switch, momentary remote pressure switch and M-LOK mount all in the 88127 box
- 50,000 candela and a 447 m beam on high, from a 1,000 lumen light
- Multi-fuel: 1.75 hours on high with the SL-B26 pack, 1.25 hours on two CR123A cells
- IP67 with the push-button switch, 2 m impact tested, and a limited lifetime warranty from Streamlight
Cons
- With the remote pressure switch installed the rating drops to IP54, water-resistant rather than waterproof
- The remote switch in the box is momentary only; one owner wishes it had an always-on button
- Owners call it bulky on short guns; one says under 11.5 inches of barrel he would look elsewhere
- Mounting the pressure pad is the most repeated owner complaint, from the rubber mounts to the pad itself
Best for: an AR-15 or carbine with a 14.5 or 16 inch barrel and an M-LOK or Picatinny handguard, where one box should cover light, switch and mount. On an SBR or a pistol-caliber carbine, look at the SureFire M340C or the Olight Odin S instead.
Key specifications
| Manufacturer | Streamlight |
|---|---|
| Output (high) | 1,000 lumens, 50,000 candela, 447 m |
| Output (low) | 60 lumens, 3,100 candela, 111 m |
| Runtime (high) | 1.75 hr (SL-B26) · 1.25 hr (2x CR123A) |
| Runtime (low) | 24 hr (SL-B26) · 21 hr (2x CR123A) |
| Battery | SL-B26 USB rechargeable pack (included on 88127) or 2x CR123A |
| Length | 5.43 in |
| Weight | 7.2 oz with SL-B26 · 6.6 oz with CR123A |
| Switch | Jack-Cap tail cap push-button plus a port for the included momentary remote pressure switch |
| Programs | TEN-TAP: high/strobe, high only, low/high |
| Mount | Integrated clamp for Picatinny (MIL-STD-1913) rails; M-LOK mount included |
| Water and impact | IP67 with push-button switch (1 m for 30 minutes), IP54 with remote installed; 2 m impact tested |
| Body | 6000-series machined aluminum, anodized |
| Warranty | Streamlight limited lifetime |
| Model on this card | 88127, Black (SL-B26 USB kit) |
“This is a good, complete package for a light for a carbine or rifle. It is BRIGHT and the light carries a long way out.”
ChipB, owner (ME) via OpticsPlanet
447 m or 332 m? The beam distance on listings
OpticsPlanet's spec table gives the HL-X “80 - 332 m”. That matches Streamlight's 2017 sheet, which rated the light at 27,600 candela and a 332 m beam; Streamlight's current product page, info sheet and fact sheet rate it at 50,000 candela and 447 m, and that is the figure we print. Streamlight does not say when the rating changed, so reviews from the early years may describe lights sold under the earlier rating.
What reviewers report (235 reviews, 4.6/5 on OpticsPlanet)
OpticsPlanet shows 4.6/5 from 235 reviews. We read all 235 in our 14 October 2026 export, dated April 2017 to June 2026: 173 give five stars, 44 give four, 9 give three, 1 gives two and 8 give one star. 124 carry OpticsPlanet's Verified Owner tag. The reviews cover both kits, and most do not say which one they bought.
Brightness and reach
Brightness is the main theme: more than 150 of the 235 bring up brightness, lumens, the beam or throw, almost always as praise. On reach, one reviewer writes:
“I could easily identify targets out to 150 yards.”
Jason (PA) via OpticsPlanet, December 2017
Not everyone reads the beam the same way. One reviewer lists “More of a flood light than a spot” as a con, and the review OpticsPlanet ranks as its most helpful positive warns about indoor use:
“For in home use I caution you that this might be too bright as you may momentarily hurt your own eyes if you shine it on a light colored wall.”
George (MD) via OpticsPlanet, May 2017
“I was afraid that it would be too bright but the way the HL beam works it doesn't feel over powered for inside a house.”
GreenSN (CA), a Verified Owner, via OpticsPlanet, January 2018
Flicker and cut-outs
10 of the 235 reviews, dated 2018 to 2024, describe the light flickering, cutting out or stopping intermittently, and six of those tie it to shooting or recoil. The review OpticsPlanet ranks as its most helpful negative is one of them:
“After 300 or so rounds the light would flicker off and not come back on until I hit it.”
Owen Petrey (KY) via OpticsPlanet, August 2018, a one-star review
“Recently it began to cut out under recoil and become unreliable.”
Brady (AL) via OpticsPlanet, July 2018, a three-star review
“Light flickers with recoil”
marbs (FL), a Verified Owner, via OpticsPlanet, July 2024, listed as a con in a four-star review
Some of these reviewers describe their own workarounds; we do not repeat them as advice. One reviewer whose light stopped working posted an update the next day saying it worked after cleaning the contacts. Others report the opposite experience:
“Ive had no issues with flickering and mount stays solid.”
Artemis (AK) via OpticsPlanet, June 2023
“I stopped counting after I hit over 1000 rounds on this light.”
K.J. (WV) via OpticsPlanet, April 2019, a four-star review (they run it on the tail cap)
Mounting the pressure pad
21 reviews, from 20 reviewers, describe trouble mounting the remote pressure switch: the pad sitting loose in its rail clip, the clips being hard to fit, or the tape and zip-tie method. A separate handful report the pad or its cord feeling flimsy, wearing or failing. Two reviewers in 2024 point out that the pad itself has no M-LOK mount.
“They work, but it’s sloppy.”
Ace (CA), a Verified Owner, via OpticsPlanet, June 2021, on the rail mount, zip ties and tape
“it allows the pad to slide forward and back about a quarter inch”
Jason (PA) via OpticsPlanet, December 2017
“Inserting the pressure pad in the rail mount was a bit tricky but doable.”
hi2meb (CA), a Verified Owner, via OpticsPlanet, January 2024
Size and weight
17 reviews call the light itself big, long, bulky or heavy, and 16 call it light, compact or not too big (a few more complain about the included mount rather than the light). Short-barrel owners land on both sides:
“Would recommend on a full size rifle not an AR pistol.”
Eli (CO), a Verified Owner, via OpticsPlanet, March 2019
“The light is very bright but not bulky in size. I mounted on my Palmetto State Arms 10.5 inch ar15 pistol chambered in 556.”
Lando (AL), a Verified Owner, via OpticsPlanet, February 2024
Battery and charging
Several reviewers praise the rechargeable pack and the CR123A backup. Four list battery life as a weakness, and one expected a charger in the USB kit (see the box section above).
“Only con is it is a battery hog can drain batteries fast on high”
Eli (TX), a Verified Owner, via OpticsPlanet, August 2018
Trade-offs, plainly
- One switch at a time. Streamlight says the HL-X uses either the remote or the tail cap; for both at once, the HL-X Pro's Jack-Cap does it.
- The water rating depends on the switch: IP67 with the push-button tail cap, IP54 with the remote pressure switch installed (Streamlight).
- Flicker reports: 10 of the 235 reviews, six of them tied to shooting or recoil. A small share, but on a weapon light it is the complaint we weigh most.
- The pressure pad is fiddly to mount: 21 reviews describe it, and reviewers note the kit has no M-LOK mount for the pad itself.
- It is not small: 5.43 inches and 6.9 oz with the SL-B26 pack (Streamlight), and 17 reviews call the light itself big, long, bulky or heavy.
- The pack charges outside the light, Streamlight's box list names a USB cord but no wall adapter, and we cannot tell you which charging port your pack will have.
- The warranty is limited lifetime, but Streamlight's warranty page gives switches and electronics 2 years with proof of purchase, and the remote is a switch.
How it compares on our rifle light roundup
Our best rifle light guide does not card the plain HL-X; its overall pick is the HL-X Pro, which Streamlight rates at the same output. The other lights there answer different needs, per that page:
- Cloud Defensive REIN 3.0: the most reach, rated at 100,000 candela for the standard model by Cloud Defensive; only an M-LOK mount in the box, and a constant-on remote switch.
- Streamlight ProTac 2.0 Rail Mount HP: the most output, 2,000 lumens and 85,000 candela per Streamlight, on its SL-B50 pack only, at 9.06 oz and 6.30 in.
- Olight Odin S: the budget pick, 1,500 lumens per the retailer listing, with no candela figure we could confirm from Olight.
- SureFire M340C Mini Scout Light Pro: the compact benchmark for SBRs and pistol-caliber carbines, 4.1 inches and 3.65 oz with 500 lumens and 7,600 candela per SureFire.
How we reviewed it
A research-based review built from Streamlight's HL-X and HL-X Pro product pages, the HL-X info sheet, fact sheet #297, instructions and Streamlight's warranty page (read 14 October 2026), the OpticsPlanet listing, and all 235 OpticsPlanet reviews we exported on 14 October 2026, whose themes we counted ourselves. We have not tested this light hands-on. Our 4.5 score is our opinion; owner ratings are shown attributed to OpticsPlanet. We give no installation or firearm modification steps; follow Streamlight's instructions or use a qualified gunsmith. See how we evaluate.
Should you buy it?
- Buy the HL-X if you will run either the tail cap or the remote and want Streamlight's 1,000 lumen, 50,000 candela output on a rechargeable pack or CR123A cells, with an M-LOK mount in the box.
- Buy the HL-X Pro if you want the tail button and the remote working together; Streamlight rates it at the same output.
- Skip both on a short barrel where every inch counts: the SureFire M340C in our roundup is 4.1 inches long.
- Want more reach? The REIN 3.0 is rated at 100,000 candela for the standard model.
FAQ
What is the difference between the Streamlight HL-X and the HL-X Pro?
The switching. Streamlight says the HL-X uses either a remote pressure switch or a standard push-button tail cap switch, so you run one at a time, while the Pro's Jack-Cap tail cap gives push-button and remote pressure switch operation together. Streamlight lists the same output for both, 1,000 lumens, 50,000 candela and a 447 m beam, with the same runtimes and length. The Pro weighs 0.2 to 0.3 oz more and comes in black or tan; the HL-X comes in black.
How far does the Streamlight ProTac HL-X reach?
Streamlight rates it at a 447 m beam on high, from 50,000 candela, and 111 m on low. Some listings, including the OpticsPlanet spec table, still show 332 m: that is Streamlight's 2017 rating of 27,600 candela, and Streamlight's current documents give 447 m.
Does the Streamlight ProTac HL-X come with an M-LOK mount?
Yes, in current production. Streamlight's info sheet lists an M-LOK mount for both kits, model 88066 and model 88071, alongside the remote switch, tail switch, retaining clips and mounting hardware. Streamlight's 2017 sheet did not list one, which is why some older reviews say they bought a mount separately. Reviewers note the kit has no M-LOK mount for the pressure pad itself.
Is the Streamlight ProTac HL-X rechargeable?
The 88071 kit is: it comes with Streamlight's SL-B26 rechargeable pack and a USB cord. The pack charges outside the light, in about 6 hours with Streamlight AC adapters according to the HL-X instructions. The 88066 kit comes with two CR123A lithium cells instead, and Streamlight says the light is not designed for rechargeable CR123 cells.
How long does the HL-X run on high?
Streamlight rates it at 1.75 hours on high with the SL-B26 pack and 1.25 hours with two CR123A cells. On low it rates 24 hours and 21 hours, and on strobe 3.5 hours and 2.5 hours.
Is the Streamlight ProTac HL-X waterproof?
With the push-button tail cap installed, Streamlight rates it IP67, waterproof to 1 m for 30 minutes. With the remote pressure switch installed the rating is IP54, which is water-resistant rather than waterproof.
Where is the Streamlight ProTac HL-X made?
Streamlight's fact sheet #297 for the light says it is made in China.
